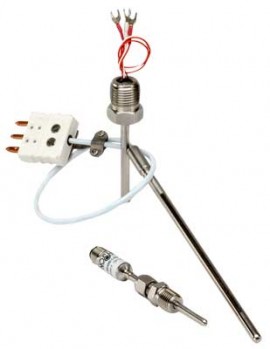

Features a temperature range of -50/400 -50 °F to 400 °F, PT100 standard, Single, 3-wire 1/2" NPT Male connector with 1/2" NPT conduit with 6" flying leads.
Features a temperature range of -50/400 -50 °F to 400 °F, PT100 standard, Single, 3-wire 1/2" NPT Male connector with 1/2" NPT conduit with 6" flying leads.
NOSHOK 900 Series is a general purpose RTD probes with PVC or PTFE lead wires.
Features
Applications
| Temperature ranges | -50 °F to 400 °F (-50 °C to 200 °C)
-50 °F to 750 °F (-50 °C to 400 °C) -330 °F to 1,100 °F (-200 °C to 600 °C) |
| Sheath material | 316 stainless steel |
| Finish (standard) | 32 micro-inches maximum |
| Pressure rating | 500 psi (34.5 bar), tube only |
| RTD element | PT100 ohm @ 32 °F (0 °C), a=0.00385 IEC 751 |
| Lead wires | Stranded 22 AWG standard, PVC or PTFE insulation |
| Self-heating | 50 mW / °C typical in moving water |
| Insulation resistance | Single element probes: 100 mega ohm/min. at 500 Vdc, leads to case
Dual element probes: 100 mega ohm/min. at 100 Vdc, between element and leads to case |
| Transition | Sheath to wire transition max. temperature 266 °F (130 °C) |
| Temperature ranges | -50 °F to 400 °F (-50 °C to 200 °C)
-50 °F to 750 °F (-50 °C to 400 °C) -330 °F to 1,100 °F (-200 °C to 600 °C) |
| Sheath material | 316 stainless steel |
| Finish (standard) | 32 micro-inches maximum |
| Pressure rating | 500 psi (34.5 bar), tube only |
| RTD element | PT100 ohm @ 32 °F (0 °C), a=0.00385 IEC 751 |
| Lead wires | Stranded 22 AWG standard, PVC or PTFE insulation |
| Self-heating | 50 mW / °C typical in moving water |
| Insulation resistance | Single element probes: 100 mega ohm/min. at 500 Vdc, leads to case
Dual element probes: 100 mega ohm/min. at 100 Vdc, between element and leads to case |
| Transition | Sheath to wire transition max. temperature 266 °F (130 °C) |
