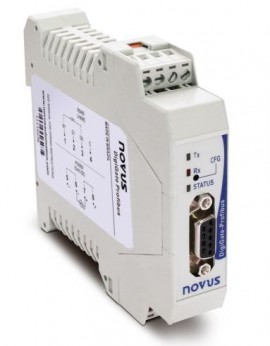

NOVUS 8816011210 DigiGate Profibus, gateway profibus DP/Modbus RTU

Model: 8816011210

NOVUS 8816011210 DigiGate Profibus, gateway profibus DP/Modbus RTU

Model: 8816011210

Ideal equipment for interconnecting a Profibus DP network with a Modbus RTU network and operates as a master station in the Modbus network and as a slave station in the Profibus network.

Ideal equipment for interconnecting a Profibus DP network with a Modbus RTU network and operates as a master station in the Modbus network and as a slave station in the Profibus network.

Your Price $334.00 USD
Availability 2 to 3 Weeks
Quantity

NOVUS 8816011210 Offers

The digigate profibus operates at the entire range of communication rates, from 9600 bps to 12 Mbps.

Features

  • Protocol: Profibus DP
  • Addressing range: 0 to 125
  • Automatic detection of supported baud rate
  • "GSD" file included
  • Termination and polarization resistors included (activated by jumper)
  • Profibus connection: DB9 connector
  • Operates from 1200 to 115200 bps
  • Protection at the bus: ±60 Vdc, 15 kV ES
  • Commands available for data reading: "01 Read Coil Status", "02 Read Input - Status", "03 Read Holding Register" and "04 Read Input Register"
  • Commands available for data writing: "05 Force Single Coil", "06 Preset Single Register", "15 Force Multiple Coils" and "16 Preset Multiple Registers"
  • Operating environment: 0 to 50°C, 30 to 80% of relative humidity, without condensation
  • Mounting: DIN 35 mm rail
  • Electrical insulation between the Profibus interface and the rest of the device: 1000 Vac
  • Power supply: 10 a 35 Vdc. Internal protection against inverse polarity
  • Frontal lit indicators for communication and status

What's included with the NOVUS 8816011210

  • NOVUS 8816011210 DigiGate Profibus, gateway profibus DP/Modbus RTU
