With ORP, Conductivity, TDS, this benchtop meter is used for water quality testing and monitoring and wastewater treatment monitoring. It has ph range of -2.00 to 16.00 pH.
With ORP, Conductivity, TDS, this benchtop meter is used for water quality testing and monitoring and wastewater treatment monitoring. It has ph range of -2.00 to 16.00 pH.

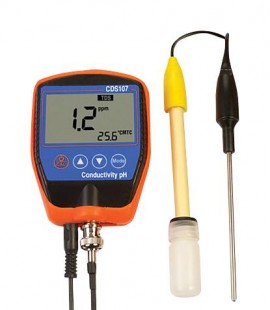

The CDS107 is a microprocessor based multi-purpose meter. The meter can be used as a benchtop or handheld meter to measure pH, ORP, conductivity, total dissolved solids, salt and temperature. Features include automatic temperature and altitude compensation with the ability to manually adjust the salinity compensation.
Features
Applications
| Series | CDS107 Series |
| Type | benchtop meter |
| Configuration | ORP |
| Measurement range | Conductivity |
| Measurement range | TDS |
| Configuration | Salt & Temperature |
| Configuration | Microprocessor-Based |
| Configuration | 9 V Battery |
| Configuration | AC Adaptor |
| Configuration | Large LCD Display |
| Power | 9 V battery or AC adaptor |
| pH Range | -2.00 to 16.00 pH |
| pH Accuracy | ±0.01 + 1 digit |
| pH Resolution | 0.01 pH |
| ORP Range | -1999 to -200 mV; -199.9 to 499.9 mV; 500 to 2000 mV |
| ORP Accuracy | ±2 + 1 digit |
| ORP Resolution | 0.1/1 mV |
| Temperature Range | 32 to 230°F (0 to 110°C) |
| Temperature Accuracy | ±0.2 + 1 digit |
| Temperature Resolution | 0.1°C |
| Conductivity Range | 0.0 to 199.9 μS; 200 to 1999 μS; 2.00 to 19.99 mS; 20.0 to 100.0 mS |
| Conductivity Accuracy | ±2% FS |
| TDS Range | 0.0 to 131.9 ppm; 132 to 1319 ppm; 1.32 to 13.19 ppt; 13.2 to 66.0 ppt |
| TDS Accuracy | ±2% FS |
| Salt Range | 0.0 to 99.9 ppm; 100 to 999 ppm; 1.00 to 9.99 ppt; 10.0 to 50.0 ppt |
| Salt Accuracy | ±2% FS |
| pH Compensation | ATC: 32 to 212°F (0 to 100°C) |
| ORP Compensation | N/A |
| Conductivity Resolution | 0.1/1μS/0.01/0.1 mS |
| Conductivity Compensation | ATC: 32 to 122°F (0 to 50°C) |
| TDS Resolution | 0.1/1 ppm/0.01/0.1 ppt |
| TDS Compensation | ATC: 32 to 122°F (0 to 50°C) |
| Salt Resolution | 0.1/1 ppm/0.01/0.1 ppt |
| Salt Compensation | ATC: 32 to 122°F (0 to 50°C) |
| Dimensions | 3 x 4.5 x 1.25" (76 x 114 x 32 mm) |
| Weight | 9.17 oz (260 g) |
