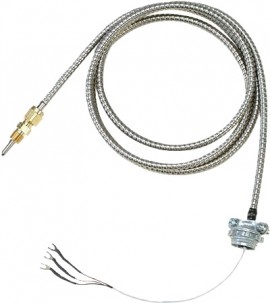

Designed for plastics processing, this straight 100 Ohm platinum thin-film RTD probe measures -50°C to 260°C (-58°F to 500°F). It uses a 1/8" NPT CM compression fitting and a 3/16" (4.76 mm) dia x 2" (5.1 cm) 304 SS probe with 3-wire spade lugs. It is Class B rated on a 60" (152.4 cm) cable. Great for extruder barrel and melt-temperature monitoring.
Designed for plastics processing, this straight 100 Ohm platinum thin-film RTD probe measures -50°C to 260°C (-58°F to 500°F). It uses a 1/8" NPT CM compression fitting and a 3/16" (4.76 mm) dia x 2" (5.1 cm) 304 SS probe with 3-wire spade lugs. It is Class B rated on a 60" (152.4 cm) cable. Great for extruder barrel and melt-temperature monitoring.
Features
Applications
| Accuracy | IEC Class B (±0.30°C @ 0°C) |
| Termination | Spade Lugs |
| Bend | Straight |
| Dimensions | Diameter: 3/16" (4.75 mm) "A" Dim: 2" (50 mm) |
Click on a category to view a selection of compatible accessories with the Omega CFTF-000-RTD-2-60-1 Extruder RTD Probe, Straight, 3/16" dia x 2", 1/8" NPT, Pt100.
| Accuracy | IEC Class B (±0.30°C @ 0°C) |
| Termination | Spade Lugs |
| Bend | Straight |
| Dimensions | Diameter: 3/16" (4.75 mm) "A" Dim: 2" (50 mm) |
Click on a category to view a selection of compatible accessories with the Omega CFTF-000-RTD-2-60-1 Extruder RTD Probe, Straight, 3/16" dia x 2", 1/8" NPT, Pt100.
