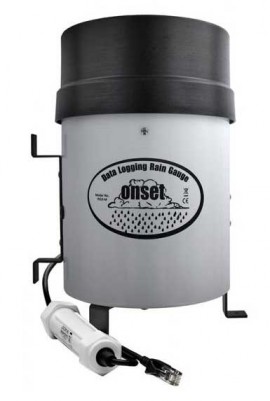

Measures rainfall with a resolution of 0.2mm and 1% accuracy for rainfall rates up to 12.7 cm per hour. The tipping bucket mechanism is mounted on a stainless steel shaft with brass bearings and includes a 2m cable.
Measures rainfall with a resolution of 0.2mm and 1% accuracy for rainfall rates up to 12.7 cm per hour. The tipping bucket mechanism is mounted on a stainless steel shaft with brass bearings and includes a 2m cable.
The rain gauge smart sensor is designed to work with HOBO® stations. The smart sensor has a plug-in modular connector that allows it to be added easily to a HOBO station. All sensor parameters are stored inside the smart sensor, which automatically communicates configuration information to the logger without the need for any programming or extensive user setup.
Features
| Measurement Range | 0 to 12.7 cm (0 to 5") Per Hour; Maximum 4000 Tips Per Interval |
| Operating Range | 0 to 50°C (32 to 122°F) Survival -40 to 75°C (-40 to 167°F) |
| Mechanism | Tipping Bucket, Stainless Steel Shaft With Brass Bearings |
| Resolution | 0.2 mm |
| Calibration | Requires Annual Calibration; Can Be Field Calibrated By User or Returned to Factory |
| Calibration Accuracy | ±1.0% at Up to 20 mm (1") Per Hour |
| Housing | Aluminum Housing and Collector |
| Dimensions | 22.8 x 15.4 cm (9 x 6"), 154 mm (6.06") Receiving Orifice |
| Approximate Weight | 1 Kg (2 lbs) |
| Cable Lengths | 2 M, 6.5 Ft |
