Onset HOBO T-ACT-0750-050 Accu-CT Current Transformer, 50 A/333 mV

Model: T-ACT-0750-050

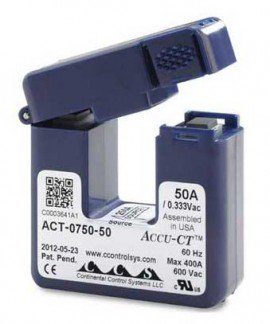

Onset HOBO T-ACT-0750-050 Accu-CT Current Transformer, 50 A/333 mV-

Downloads:

More Onset HOBO Products

Ask an Expert

Onset HOBO T-ACT-0750-050 Accu-CT Current Transformer, 50 A/333 mV

Model: T-ACT-0750-050

Revenue grade, split-core current transformer offers outstanding linearity and phase angle accuracy with a unique one-handed opening and closing mechanism.

Revenue grade, split-core current transformer offers outstanding linearity and phase angle accuracy with a unique one-handed opening and closing mechanism.

Your Price $99.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your T-ACT-0750-050 Accu-CT Current Transformer

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your T-ACT-0750-050 Accu-CT Current Transformer

Onset HOBO T-ACT-0750-050 Offers

For use with HOBO H22, U30, and RX3000 Series Data Loggers.

Features

  • Unprecedented Linearity
  • Window Opening 0.75 Inch
  • The Accu-CT revenue grade, split-core current transformer offers outstanding linearity and phase angle accuracy with a unique one-handed opening and closing mechanism.
  • Safe: burden resistor built-in, 333 mVac voltage output at rated full scale current, no shorting blocks needed
  • IEEE C57.13 and IEC 60044-1 accuracy: over full temperature range and down to 1% of rated current
  • Exceptionally low phase angle error: essential for accurate power and energy measurements
  • Glove-friendly: easy to open and install with one hand while wearing safety gloves
  • Approvals: UL recognized, CE mark, RoHS

Onset HOBO T-ACT-0750-050 Specifications

Accuracy +/-0.75% from 1% to 120% of rated primary current
Phase angle +/- 0.5 degrees (30 minutes) from 1% to 120% of rated current
Accuracy standards IEEE C57.13 class 1.2 and IEC 60044-1 class 1.0
Primary rating 5 to 250 Amps, 600 Vac, 60 Hz nominal
Output 333.33 mVac at rated current
Operating temperature range -30C to 55C
Operating humidity range 0 to 95% RH non-condensing
Safe integral burden resistor, no shorting block needed, unlessotherwise noted
Standard lead length Standard lead length
Click here for complete specifications on the Onset HOBO T-ACT-0750-050

What's included with the Onset HOBO T-ACT-0750-050

  • Onset HOBO T-ACT-0750-050 Accu-CT Current Transformer, 50 A/333 mV
