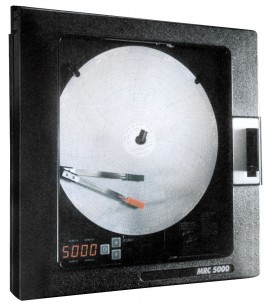

Features 10' diameter recording charts with user selectable chart speeds: 8, 12, 24, and 48 hours, and 7 days. 2 trend pen version, with configurable spans.
Features 10' diameter recording charts with user selectable chart speeds: 8, 12, 24, and 48 hours, and 7 days. 2 trend pen version, with configurable spans.
Features
| Recording | |
| Pen Type | Disposable fiber tip |
| Pen Colour | Pen 1 - Red; Pen 2 - Green |
| Chart Size | 10" |
| Chart Drive | Stepper motor |
| Chart Rotation | User configurable; 8-hour, 12-hour, 24-hour or 7-day |
| Chart Span | Bottom & top of span, -9999 to 9999 units |
| Input Ranges | |
| J T/C | 0 to 700°C & 0 to 1400°F |
| K T/C | 0 to 1360°C & 0 to 2500°F |
| T T/C | -200 to 400°C & -330 to 750°F |
| R T/C | 200 to 1650°C & 400 to 3000°F |
| S T/C | 200 to 1650°C & 400 to 3000°F |
| RTD 100Ω | -140 to 400°C & -220 to 750°F |
| Platinum | 0.00385Ω/Ω/°C |
| DC Current | 0 to 20mA, 4 to 20mA; Internal 4.7Ω shunt resistor |
| DC Voltage | 0 to 25mV, 0 to 50mV, 10 to 50mV, 0 to 5V, 1 to 5V |
| Input Performance | |
| Measurement Error | Type J, K, T, R, S & RTD: ±0.25% of span ±1° mA, mV & VDC: ±0.25% of scaled span + 1 LSD |
| Cold Junction | ± 0.2°C @ 25°C |
| Compensation Error | 0.04°C/°C deviation from 25°C |
| Linearization Error | TCs: ± 0.25°C typical. ± 0.5°C worst case RTDs: ±0.1°C typical, ± 0.3°C worst case |
| Ambient Temperature Error | ±0.01% of span/°C deviation from 25°C |
| Alarms | |
| Number | Up to 2 process alarms for each of 2 inputs |
| Type | Process high or low |
| Limit Devices | Optional high/low limits for each input with latching output Normally open output latches open Red reset button included to right of display |
| Hysteresis | Fully adjustable, 0 to 200 units, single sided |
| Security | Alarm setpoint changes can be prohibited |
| Sensor Fault Action | Alarms work normally in "Hi" and "Lo" conditions |
| Relay Outputs | Relays | SPST, contacts rated 5A resistive at 115VAC, 2.5A resistive @ 230VAC, 1/8 HP @ 230VAC (single phase), 250VA A 115/230 VAC |
| Power Requirements | |
| Line Voltage | 90-264 VAC, 50/60 Hz |
| Power Consumption | 18 VA max. |
| Construction | |
| Enclosure | Injection molded Noryl case and cover with acrylic window |
| NEMA Rating | NEMA 3 standard |
| Mounting | Panel or wall |
| Panel Cutout | 12.7" x 12.7" (322.6 x 322.6mm) |
| Panel Depth | 2.5" (63.5mm) |
| Panel Protrusion | 1.3" (33.0mm) |
| Overall Dimensions | 14 x 14 x 3.8" (355.6 x 355.6 x 96.5mm) |
| Weight | 15 lb (6.8 kg) |
