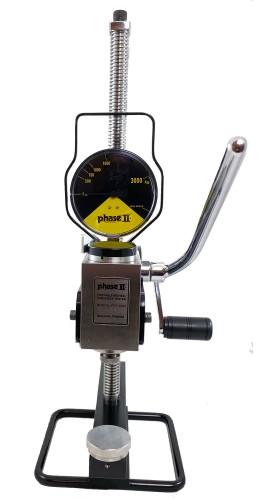

Engineered and built for durability, this versatile Brinell hardness tester can take accurate Brinell hardness tests in any direction, up, down, or sideways. Use as a bench-type or portable hardness tester in the field, this tester meets all Brinell standards, including ASTM E-110.↵
Engineered and built for durability, this versatile Brinell hardness tester can take accurate Brinell hardness tests in any direction, up, down, or sideways. Use as a bench-type or portable hardness tester in the field, this tester meets all Brinell standards, including ASTM E-110.↵
Easy to operate and small enough to carry to outside locations for on-site testing.
Features
Applications
| Test Force | 3000 kg |
| Accuracy of Test Force | 1% |
| Indenter | 10 mm carbide ball indenter |
| Testing Range | 16 to 650 HBW |
| Maximum Specimen Height | Approximately 13" |
| Throat Depth | Approximately 4" |
| Repeatability | ISO 6506/ASTM E110 |
| Error | ISO 6506/ASTM E110 |
| Weight | 32 lbs (14.5 kg) |
| Test Force | 3000 kg |
| Accuracy of Test Force | 1% |
| Indenter | 10 mm carbide ball indenter |
| Testing Range | 16 to 650 HBW |
| Maximum Specimen Height | Approximately 13" |
| Throat Depth | Approximately 4" |
| Repeatability | ISO 6506/ASTM E110 |
| Error | ISO 6506/ASTM E110 |
| Weight | 32 lbs (14.5 kg) |
