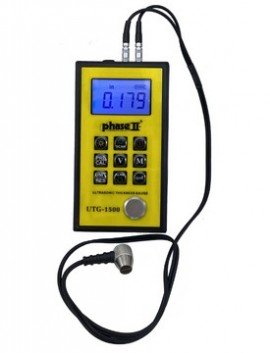

With uses in many areas of industry, the Phase II UTG-1500 Ultrasonic Wall Thickness Gauge can perform precise thickness measurements on various types of raw materials, component parts and assembled machinery.
With uses in many areas of industry, the Phase II UTG-1500 Ultrasonic Wall Thickness Gauge can perform precise thickness measurements on various types of raw materials, component parts and assembled machinery.
Advanced and lightweight ultrasonic thickness gauge that is designed to be convenient to use and rugged enough to operate in harsh environments.
Features
| Display Type | 4-Digit LCD with Black Light |
| Resolution | 0.001" (0.01 mm) |
| Measuring Range | 0.04 to 8.0" in steel with standard probe |
| Accuracy | ± (0.5% thickness + .001") |
| Sound Velocity Range | 3280 to 32,805 ft/s (1000 to 9999m/s) |
| Operating Temperature | 32 to 122°F |
| Frequency | 5MHz |
| Update Range | 4Hz |
| Memory | 20 Groups (100 files/group) |
| Output | N/A |
| Power Supply | 2 x 3v AA alkaline batteries |
| Battery Life | Approx. 100 hours (with backlight off) |
| Power Consumption | Working Current is Less Than 3V |
| Dimensions | 5.90 x 2.91 x 1.30" (150 x 74 x 33 mm) |
| Weight | 8.6 oz (245 g) |
