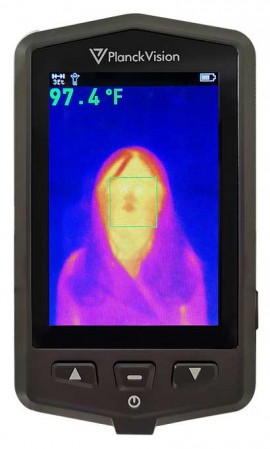

Designed to screen individuals for Elevated Body Temperature (EBT), this camera has a self-contained monitor for displaying real-time thermal images. Temperature measurements are taken from the scene of the camera, and the operator is alerted when the temperature is above a user-defined threshold.
Designed to screen individuals for Elevated Body Temperature (EBT), this camera has a self-contained monitor for displaying real-time thermal images. Temperature measurements are taken from the scene of the camera, and the operator is alerted when the temperature is above a user-defined threshold.
Features
Applications
| Temperature Measurement and Alarm | |
| Measurement Range | 93 to 108°F (34 to 42°C) |
| Measurement Accuracy | ≤±0.9°F (≤±0.5°C) |
| Measurement Distance | 2 to 6' (0.6 to 1.8 m) |
| Target Mode | Single person |
| Temperature Alert | User defined alarm threshold value |
| Thermal Camera | |
| Sensor Technology | Uncooled Microbolometer |
| Resolution | 160 x 120 |
| NETD | <50 mK (0.050°C) |
| FOV | 57 x 44° |
| Color Palettes | Iron red, Gray, Rainbow, and Flame (red on gray) |
| General | |
| Display | 3.5" TFT Display (480 x 320) |
| Battery | 4 hour, 1500 mAH Lithium polymer battery |
| Ambient Temperature | 64 to 79°F (18 to 26°C) |
| Operating Humidity | EC 60068-2-30/24h 85% RH |
| IP Rating | IP54 |
| Dimensions | 4.9 x 2.8 x 0.63" (125 x 72 x 16 mm) |
| Weight | 6.5 oz (180 g) |
Click on a category to view a selection of compatible accessories with the Planck TC160-LT ThermaCheck LT Portable EBT Screening Camera.
