This 1/8 DIN process digital panel meter accepts process, pulse, or temperature inputs. It features a display of six 0.6" digits and two lines of data, all shown with a bright and easy to read red LED. The ProVu PD6000 Series can be programmed with the onboard USB and MeterView Pro Software or via the front panel buttons.
This 1/8 DIN process digital panel meter accepts process, pulse, or temperature inputs. It features a display of six 0.6" digits and two lines of data, all shown with a bright and easy to read red LED. The ProVu PD6000 Series can be programmed with the onboard USB and MeterView Pro Software or via the front panel buttons.
ProVu's large 0.6" upper display provides a highly accurate and precise 6-digit view of the process measurement. Its 24-bit A/D is accurate to ±0.03% of calibrated span ±1 count.
The upper display can be programmed to indicate PV, maximum (peak), minimum (valley), alternating maximum/minimum, one of eight alarm set points, or Modbus input. The lower display can also be configured to display engineering units, set points, user defined legends, or simply turned off.
Features
| Display | Upper display: 0.60" (15mm) high Lower display: 0.46" (12mm) high Both are 6 digits (-99999 to 999999), red LEDs |
| Front Panel | NEMA 4X, IP65 |
| Inputs | Field selectable: 0-20, 4-20mA, ±10V DC (0-5, 1-5, 0-10V), Modbus PV (Slave) |
| Process Input Accuracy | ±0.03% of calibrated span ±1 count, square root & programmable exponent accuracy range: 10-100% of calibrated span |
| Temperature Drift | 0.005% of calibrated span/°C max from 0 to 65°C ambient, 0.01% of calibrated span/°C max from -40 to 0°C ambient |
| Signal Input Conditioning | Linear, square root, programmable exponent, or round horizontal tank volume calculation |
| Multi-Point Linearization | 2 to 32 points for PV or PV1 2 to 8 points for PV2 (Dual-Scale Level feature) |
| Output Source | Process variable (PV), max, min, set points 1-8, manual control setting, or Modbus input |
| Output Accuracy | ±0.1% of span ±0.004mA |
| Channels | 4 digital inputs & 4 digital outputs per module |
| System | Up to 2 modules for a total of 8 inputs & 8 outputs |

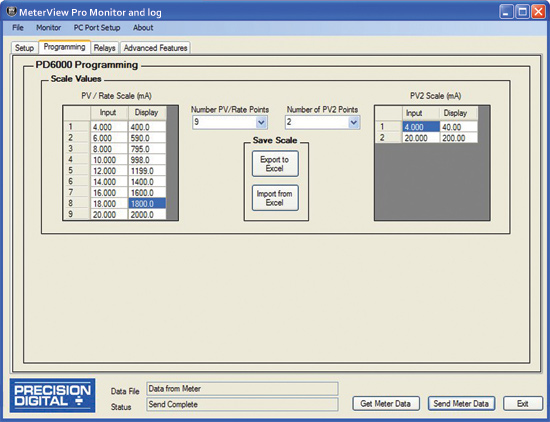

MeterView® Pro software is designed for use with ProVu meters and allows users to remotely program, monitor, and datalog using a PC. Remote programming allows for all available meter settings to be programmed through an easy, user-friendly interface. The data acquisition feature allows the user to gather readings from a meter at user-selected intervals and generate charts using common tools like Microsoft® Excel. A linearization setup function is also included. With this utility the user can configure up to 32 linearization points and upload them to the meter. All configuration data can be saved to a file for future use.
This software is accessible via the onboard USB connection on all ProVu panel meters produced since 6 September 2016 (firmware version 4.0 or higher). For an RS-232 connection, use a PDA1232 adapter.
Click on a category to view a selection of compatible accessories with the Precision Digital PD6000-7R0 ProVu Process Meter, 12-24V DC.
| Display | Upper display: 0.60" (15mm) high Lower display: 0.46" (12mm) high Both are 6 digits (-99999 to 999999), red LEDs |
| Front Panel | NEMA 4X, IP65 |
| Inputs | Field selectable: 0-20, 4-20mA, ±10V DC (0-5, 1-5, 0-10V), Modbus PV (Slave) |
| Process Input Accuracy | ±0.03% of calibrated span ±1 count, square root & programmable exponent accuracy range: 10-100% of calibrated span |
| Temperature Drift | 0.005% of calibrated span/°C max from 0 to 65°C ambient, 0.01% of calibrated span/°C max from -40 to 0°C ambient |
| Signal Input Conditioning | Linear, square root, programmable exponent, or round horizontal tank volume calculation |
| Multi-Point Linearization | 2 to 32 points for PV or PV1 2 to 8 points for PV2 (Dual-Scale Level feature) |
| Output Source | Process variable (PV), max, min, set points 1-8, manual control setting, or Modbus input |
| Output Accuracy | ±0.1% of span ±0.004mA |
| Channels | 4 digital inputs & 4 digital outputs per module |
| System | Up to 2 modules for a total of 8 inputs & 8 outputs |
MeterView® Pro software is designed for use with ProVu meters and allows users to remotely program, monitor, and datalog using a PC. Remote programming allows for all available meter settings to be programmed through an easy, user-friendly interface. The data acquisition feature allows the user to gather readings from a meter at user-selected intervals and generate charts using common tools like Microsoft® Excel. A linearization setup function is also included. With this utility the user can configure up to 32 linearization points and upload them to the meter. All configuration data can be saved to a file for future use.
This software is accessible via the onboard USB connection on all ProVu panel meters produced since 6 September 2016 (firmware version 4.0 or higher). For an RS-232 connection, use a PDA1232 adapter.
Click on a category to view a selection of compatible accessories with the Precision Digital PD6000-7R0 ProVu Process Meter, 12-24V DC.
