This multi-function calibrator comes with a case and cables. It has a backlit LCD that's easy to read.
This multi-function calibrator comes with a case and cables. It has a backlit LCD that's easy to read.

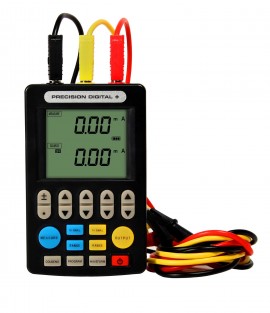

Perform quick, accurate calibrations using the Precision Digital PD9501 Multi-Function Calibrator. With multiple different outputs, it can accommodate a range of applications. For example, it's compatible with thermocouples, RTDs, ohms, current and voltage, all in 1 convenient device. The keypad offers advanced programming functions, and the backlit LCD allows you to see the digits in most types of lighting. Carrying case and cables included.
Features
| Voltage Signal | 0 to 30 V, 0 to 25 mV, 0 to 100 mV output and measurement |
| Current Signal | Active and passive 0 to 25 mA, 4 to 20 mA output and measurement |
| Thermocouple | Types K, E, J, T, R, B, S and N output and measurement |
| RTD | PT100 output and measurement |
| Ohms | Output and measurement |
| Display | 4-digit backlit LCD |
| Power Supply | Internal rechargeable lithium-ion battery, external USB |
| Product Length | 4.5" (115 mm) |
| Product Width | 2.5" (70 mm) |
| Product Height | 10.2" (26 mm) |
| Product Weight | 10.6 oz (300 g) |
| Voltage Signal | 0 to 30 V, 0 to 25 mV, 0 to 100 mV output and measurement |
| Current Signal | Active and passive 0 to 25 mA, 4 to 20 mA output and measurement |
| Thermocouple | Types K, E, J, T, R, B, S and N output and measurement |
| RTD | PT100 output and measurement |
| Ohms | Output and measurement |
| Display | 4-digit backlit LCD |
| Power Supply | Internal rechargeable lithium-ion battery, external USB |
| Product Length | 4.5" (115 mm) |
| Product Width | 2.5" (70 mm) |
| Product Height | 10.2" (26 mm) |
| Product Weight | 10.6 oz (300 g) |
