Use the kit to perform accurate, low-pressure calibrations. The kit comes with a pneumatic hand pump, FieldLab, a process connection and a hose.
Use the kit to perform accurate, low-pressure calibrations. The kit comes with a pneumatic hand pump, FieldLab, a process connection and a hose.

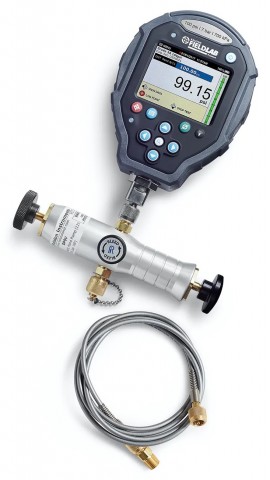

Perform precise, low-pressure calibrations with the Ralston DP0V-30PSIG-FL Pneumatic Pump Calibration Kit. With a variety of supplies, the kit makes it easy to calibrate your equipment. You can easily view the results on the 3.5" (90 mm) LCD of the FieldLab, and the Quick-Test hose can handle up to 6,900 psi of pressure.
Features
| Application(s) | Perform accurate low-pressure calibrations |
| Rechargeable Battery | Yes |
| Approvals | CSA Standard C22.2 No. 61010-1, UL / IEC / EN / AS Standard No. 61010-1, North America - Class 1 Division 1 Groups A-D, T4, (-10 < Ta < 50°C), ATEX - Ex II 1 G Ex ia IIC T4 Ga (-10 < Ta < 50°C), IECEx - Ex ia IIC T4 Ga (-10 < Ta < 50°C), UN/DOT 38.3 (Lithium Batteries), Pressure Equipment Directive 2014/68/EU, Low Voltage Directive 2014/35/EU, Electromagnetic Compatibility Directive 2014/30/EU</td> |
| Product Height | Hand pump: 3.4" (87 mm); Pressure reference: 2.5" (64 mm) |
| Product Type | Calibration kit |
| Number Of Batteries Required | 1 |
| Product Length | Hand pump: 2.9" (74 mm); Pressure reference: 9" (23 cm); Process connection: 1.29" (33 mm); Hose: 3' (0.91 m) |
| Product Width | Hand pump: 8" (21 cm); Pressure reference: 5" (13 cm); Process connection: 0.56" (15 mm) |
| Product Weight | Hand pump: 1.6 lb (725 g); Pressure reference: 2.56 lbs (1.16 kg) |
| Item(s) Included | Pneumatic hand pump, Pressure FieldLab with bottom connection, 0.25" (6.4 mm) male NPT x male Quick-Test process connection, 3' (92 cm) Quick-Test host, FieldLab AC power charger kit, 6.6' (2 m) USB cable, Carrying case |
| Material | Metal |
| Power Source | Battery powered |
| Battery Life | 1,000 hours |
