Ralston QSCM Calibration Manifold Kit with LC20, 5000 psi

Model: QSCM-KIT1-GT

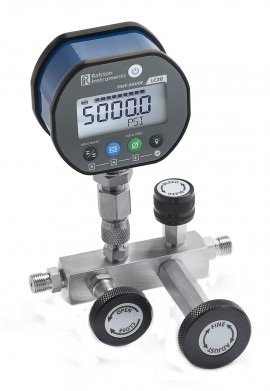

Ralston QSCM Calibration Manifold Kit with LC20, 5000 psi-

Downloads:

More Ralston Products

Ask an Expert

Ralston QSCM Calibration Manifold Kit with LC20, 5000 psi

Model: QSCM-KIT1-GT

Provide a hand-held device for field calibrations, this calibration manifold kit promotes static calibration using nitrogen or other compressed gas. This kit includes a manifold, calibration certificate, pressure reference, connectors, hoses, cable, and bag.

Provide a hand-held device for field calibrations, this calibration manifold kit promotes static calibration using nitrogen or other compressed gas. This kit includes a manifold, calibration certificate, pressure reference, connectors, hoses, cable, and bag.

Your Price $1923.47 USD
Availability 2 to 3 Weeks
Quantity

Ralston QSCM-KIT1-GT Offers

Offers exceptional control and comes in stainless steel construction.

Features

  • Fine adjustment piston with soft-seated valves allow for ultra-precise pressure control
  • Compact, portable design requires minimum space for operation
  • Stainless steel, for pressure calibration from 0 to 5000 psi
  • Calibration of static or high side of a differential pressure (DP) transmitter
  • Testing of analog gauges on gas well heads up to 5000 psi
  • Verification of analog or digital pressure devices in the field up to 5000 psi
  • Acquire test points with ease
  • Features Ralston Quick-test fittings, hoses and adapters for no-tool, no thread tape and leak free connections

Ralston QSCM-KIT1-GT Specifications

Materials Stainless steel
Seal Materials Buna-N, delrin, teflon
Maximum Pressure 5000 psi/350 bar/35 MPa
Process Connection ¼" male NPT
Reference Connection ¼" female NPT
Operating Temperature Range 0 to 130°F (-18 to 54°C)
Manifold Burst Pressure 20000 psi/1380 bar/140 MPa
Pressure Reference Ingress Protection IP67 (1 meter water submersion for 30 minutes)
Reference Connection Maximum Vacuum 0.00 InHg/0.0 kPa
Process Connection Maximum Pressure 5000 psi/350 bar/35 MPa
Hose Maximum Vacuum -30.00 InHg/-101.6 kPa
Dimensions 7.88 x 5 x 3.78" (20.02 x 12.7 x 9.6 cm)
Weight 2.63 lbs (1.19 kg)
Click here for complete specifications on the Ralston QSCM-KIT1-GT

What's included with the Ralston QSCM-KIT1-GT

  • Manifold
  • Calibration Certificate
  • Pressure Reference
  • 3 x Connectors
  • 2 x Hoses
  • Cable
  • Bag

How to set up and operate the Ralston QTCM and QSCM calibration manifold


In this training video, you'll learn how to set up and operate the QTCM and QSCM calibration manifolds for reducing leaks, saving you time. Rugged, portable, and handheld, these calibration manifolds are ideal for field calibrating pressure devices and relatively high pressures.

Ask a question about Ralston QSCM Calibration Manifold Kit with LC20, 5000 psi

Customer Reviews for the Ralston QSCM-KIT1-GT

Ralston QSCM-KIT1-GT Offers

Offers exceptional control and comes in stainless steel construction.

Features

  • Fine adjustment piston with soft-seated valves allow for ultra-precise pressure control
  • Compact, portable design requires minimum space for operation
  • Stainless steel, for pressure calibration from 0 to 5000 psi
  • Calibration of static or high side of a differential pressure (DP) transmitter
  • Testing of analog gauges on gas well heads up to 5000 psi
  • Verification of analog or digital pressure devices in the field up to 5000 psi
  • Acquire test points with ease
  • Features Ralston Quick-test fittings, hoses and adapters for no-tool, no thread tape and leak free connections
Show More...

Ralston QSCM-KIT1-GT Specifications

Materials Stainless steel
Seal Materials Buna-N, delrin, teflon
Maximum Pressure 5000 psi/350 bar/35 MPa
Process Connection ¼" male NPT
Reference Connection ¼" female NPT
Operating Temperature Range 0 to 130°F (-18 to 54°C)
Manifold Burst Pressure 20000 psi/1380 bar/140 MPa
Pressure Reference Ingress Protection IP67 (1 meter water submersion for 30 minutes)
Reference Connection Maximum Vacuum 0.00 InHg/0.0 kPa
Process Connection Maximum Pressure 5000 psi/350 bar/35 MPa
Hose Maximum Vacuum -30.00 InHg/-101.6 kPa
Dimensions 7.88 x 5 x 3.78" (20.02 x 12.7 x 9.6 cm)
Weight 2.63 lbs (1.19 kg)
Click here for complete specifications on the Ralston QSCM-KIT1-GT

What's included with the Ralston QSCM-KIT1-GT

  • Manifold
  • Calibration Certificate
  • Pressure Reference
  • 3 x Connectors
  • 2 x Hoses
  • Cable
  • Bag

How to set up and operate the Ralston QTCM and QSCM calibration manifold


In this training video, you'll learn how to set up and operate the QTCM and QSCM calibration manifolds for reducing leaks, saving you time. Rugged, portable, and handheld, these calibration manifolds are ideal for field calibrating pressure devices and relatively high pressures.

Ask a question about Ralston QSCM Calibration Manifold Kit with LC20, 5000 psi

Customer Reviews for the Ralston QSCM-KIT1-GT
