The pressure pump comes with a 3' (0.9 m) hose for reliable connection. The pump is made of anodized aluminum, Delrin, stainless steel and polysulfone.
The pressure pump comes with a 3' (0.9 m) hose for reliable connection. The pump is made of anodized aluminum, Delrin, stainless steel and polysulfone.

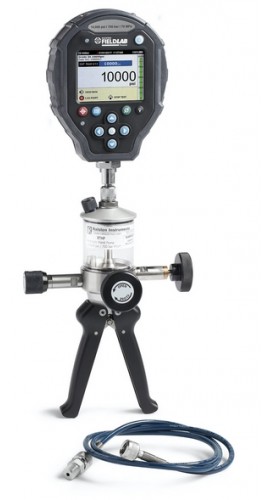

Get the job done right with help from the Ralston XTHP-10KPSIG-FL Hydraulic Hand Pump, which is made of anodized aluminum, stainless steel, Delrin and polysulfone for durability. The pump comes with a 3' (0.9 m) hose made of reinforced polyamide and stainless steel and works with a wide selection of media, including alcohol, antifreeze, mineral oil and more.
Features
| Product Length | Pump: 5.7" (15 cm); Pressure reference: 7.5" (20 cm); Process connection: 1.29" (33 mm); Hose: 3' (0.9 m) |
| Product Width | Pump: 7.5" (20 cm); Pressure reference: 5" (13 cm); Process connection: 0.63" (17 mm) |
| Battery Type | Other |
| Product Height | Pump: 10.6" (27 cm); Pressure reference: 2.5" (64 mm) |
| Pressure Limit | 10,000 psi; Burst pressure: 40,000 psi (pump, hose and pressure reference) |
| Adjustment Resolution | 0.01 psi |
| Battery Life | 1,000 hours |
| Number Of Batteries Required | 1 |
| Product Weight | Pump: 3.12 lbs (1.41 kg); Pressure reference: 2.56 lbs (1.16 kg) |
| Output(s) | Male quick-test XT (pump) |
| Power Requirements | 90 to 264 VAC, 50 to 60 Hz (Pressure reference) |
| Approvals | Pressure reference: CSA C22.2 No. 61010-1, UL/IEC/EN/AS No. 61010-1, North America - Class 1 Division 1 Groups A to D, T4, ATEX - Ex II 1 G EX ia IIC T4 Ga, IECEx to EX ia IIC T4 Ga, UN/DOT 38.3 (batteries), Pressure Equipment Directive 2014/68/EU, Low Voltage Directive 2014/35/EU, Electromagnetic Compatibility Directive 2014/30/EU |
| Seal Type | Teflon, Viton (pump, pressure reference and process connection) |
| Operating Temperature | Pump: -15 to 140°F (-26 to 60°C); Pressure reference: 14 to 122°F (-10 to 50°C); Process connection: 0 to 225°F (-18 to 105°C); Hose: -40 to 140°F (-40 to 60°C) |
| Power Source | Hydraulic |
| Rechargeable Battery | Yes |
| Product Length | Pump: 5.7" (15 cm); Pressure reference: 7.5" (20 cm); Process connection: 1.29" (33 mm); Hose: 3' (0.9 m) |
| Product Width | Pump: 7.5" (20 cm); Pressure reference: 5" (13 cm); Process connection: 0.63" (17 mm) |
| Battery Type | Other |
| Product Height | Pump: 10.6" (27 cm); Pressure reference: 2.5" (64 mm) |
| Pressure Limit | 10,000 psi; Burst pressure: 40,000 psi (pump, hose and pressure reference) |
| Adjustment Resolution | 0.01 psi |
| Battery Life | 1,000 hours |
| Number Of Batteries Required | 1 |
| Product Weight | Pump: 3.12 lbs (1.41 kg); Pressure reference: 2.56 lbs (1.16 kg) |
| Output(s) | Male quick-test XT (pump) |
| Power Requirements | 90 to 264 VAC, 50 to 60 Hz (Pressure reference) |
| Approvals | Pressure reference: CSA C22.2 No. 61010-1, UL/IEC/EN/AS No. 61010-1, North America - Class 1 Division 1 Groups A to D, T4, ATEX - Ex II 1 G EX ia IIC T4 Ga, IECEx to EX ia IIC T4 Ga, UN/DOT 38.3 (batteries), Pressure Equipment Directive 2014/68/EU, Low Voltage Directive 2014/35/EU, Electromagnetic Compatibility Directive 2014/30/EU |
| Seal Type | Teflon, Viton (pump, pressure reference and process connection) |
| Operating Temperature | Pump: -15 to 140°F (-26 to 60°C); Pressure reference: 14 to 122°F (-10 to 50°C); Process connection: 0 to 225°F (-18 to 105°C); Hose: -40 to 140°F (-40 to 60°C) |
| Power Source | Hydraulic |
| Rechargeable Battery | Yes |
