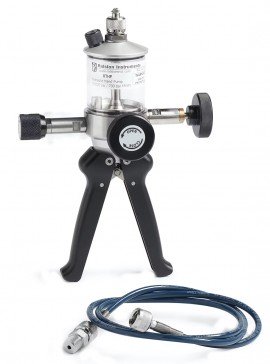

Offer two quicktest XT outlet ports, this hydraulic hand pump has a dimension of 5.7 x 7.5 x 10.6" (14.48 x 19.05 x 26.92 cm) and a hose length of 3'.
Offer two quicktest XT outlet ports, this hydraulic hand pump has a dimension of 5.7 x 7.5 x 10.6" (14.48 x 19.05 x 26.92 cm) and a hose length of 3'.
| Pressure | Maximum: 10,000 psi / 700 bar / 70 MPa Burst: 40,000 psi / 2760 bar / 275 MPa |
| Operating Temperature Range | -15 to 140°F (-26 to 60°C) |
| Materials | Anodized aluminum, stainless steel, delrin, polysulfone |
| Seal Materials | Teflon, EPDM |
| Pressure Media | Liquid |
| Fine Adjustment Resolution | 0.01 psi / 0.07 mbar / 0.00 kPa |
| Media Compatibility | Alcohol, antifreeze, ethylene glycol, hydraulic oil, mineral oil, petroleum based oil, windshield washer fluid, transmission fluid, light motor oil, Ralston calibration oil |
| Outlet Port | Male Quick-test XT, male Quick-test XT with cap and chain |
| Reservoir Volume | 4.2 fl. oz |
| Dimension | 5.7 x 7.5 x 10.6" (14.48 x 19.05 x 26.92 cm) |
| Weight | 3.25 lbs (1.47 kg) |
