Quick responding, capable of measuring ferrous and non-ferrous substrates.
Quick responding, capable of measuring ferrous and non-ferrous substrates.

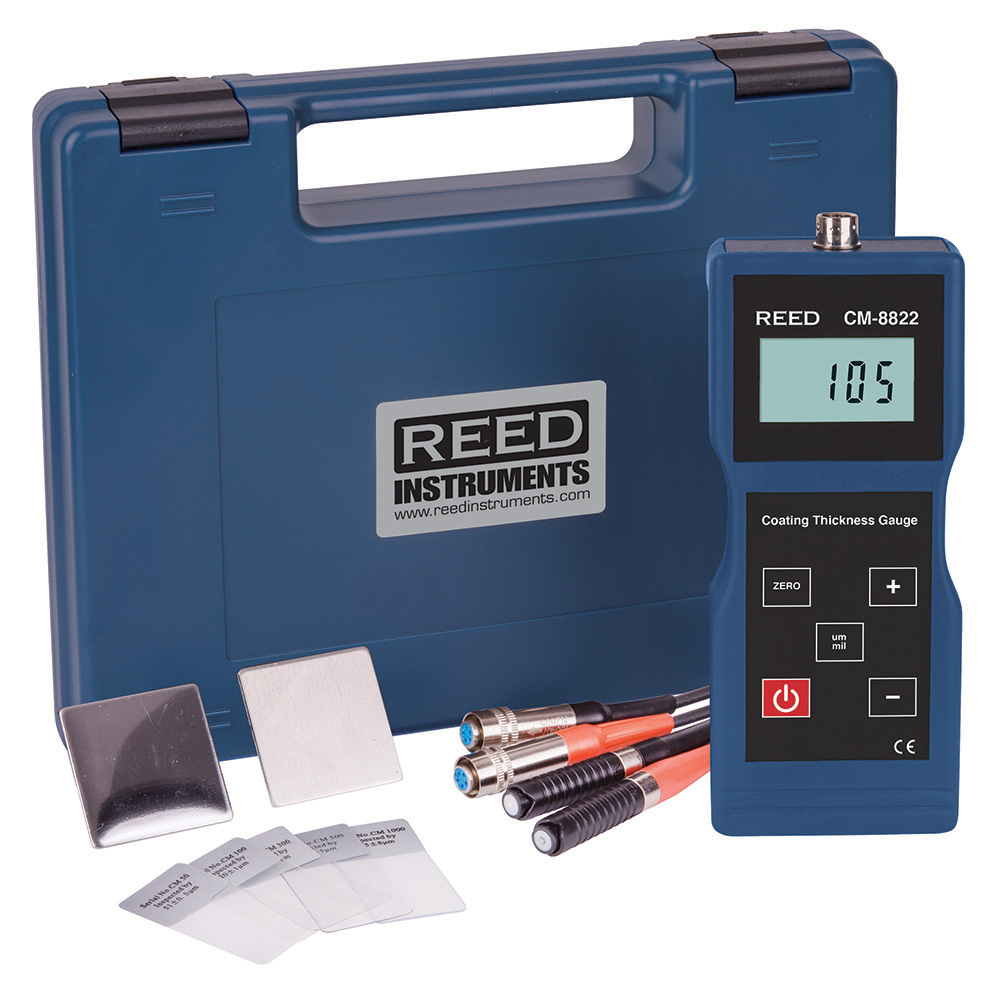

This coating thickness gauge includes ferrous and non-ferrous probes and features a zero button for quick adjustment in the field. The CM-8822 has a easy-to-read LCD display and basic accuracy of 3%.
Features
| Measuring Range | 0 to 40mils (0 to 1000µm) |
| Accuracy | <100µm: ±2µm >100µm: ±3% of rdg. |
| Resolution | 0.1µm (0 to 99.9µm) 1µm (<100µm) |
| Sampling Time | 1 second |
| Display | LCD |
| Zero Button | Yes |
| Length of Probes | 3' (36") |
| Power Supply | 4 x AA Batteries |
| Low Battery Indicator | Yes |
| Product Certifications | CE |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 20 to 90% |
| Dimensions | 6.3 x 2.7 x 1.25" (161 x 69 x 32mm) |
| Weight | 1.99lbs (0.9kg) |
