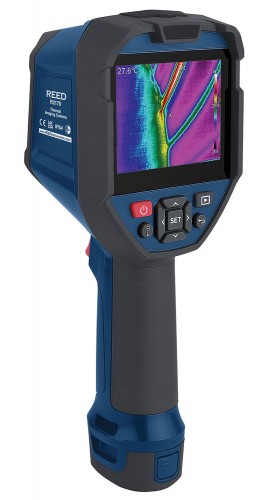

REED R2170 Thermal Imaging Camera, 320 x 240

Model: R2170 | UPC: 800837006356

Features a 320 x 240 9Hz infrared sensor with 4 image modes (Thermal, Visual, PIP, and Fusion) and rugged IP54-rated double-molded housing.

Features a 320 x 240 9Hz infrared sensor with 4 image modes (Thermal, Visual, PIP, and Fusion) and rugged IP54-rated double-molded housing.

Your Price $1595.00 USD
Availability 28 in Stock
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your R2170 Thermal Imaging Camera

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your R2170 Thermal Imaging Camera

REED R2170 Offers

This professional thermal imaging camera features a 320 x 240 (76,800 pixels) infrared sensor that can detect temperatures between -40 and 752°F (-40 and 400°C). The R2170 has the ability to display hot and cold spot temperatures on a 3.5" color LCD and allows a user to choose from 7 different color palettes. The included software allows a user to view and analyze data, and generate reports or projects in real-time on a PC. The included battery packs have been designed to be easily changed in the field, allowing for continuous work.

Features

  • 320 x 240 infrared resolution (76,800 pixels)
  • 3.5" color IPS display
  • Built-in dual LED flashlight
  • Choice of 7 color palettes
  • Intuitive on-screen measurement tools
  • 4 image modes (Thermal, Visual Image, Picture-in-Picture, Fusion (Thermal Blending))
  • High and Low temperature spot and alarm indicators
  • IP54 and 6.5' (2m) drop tested
  • 4x digital zoom
  • Rechargeable Li-ion battery
  • Tripod mountable for continuous long-term monitoring
  • View, analyze stored data and generate reports or project in real-time
  • Low battery indication and auto shut off

REED R2170 Specifications

Imaging and Optical Specifications
Field of View (FOV) 56 x 42°
Focal Length 4mm
Spatial Resolution (IFOV) 3mrad
Thermal Sensitivity (NETD) <65mK
Image Capture Frequency 9Hz
Focus Fixed
Measurement
Temperature Range -40 to 752°F (-40 to 400°C)
Accuracy ±3.6°F (2°C) or ±2% of reading, for ambient temperature at 77°F (25°C)
Resolution 0.1°F/°C/K
Detector Specifications
Detector Type Uncooled Vanadium Oxide, Focal plane array (UFPA)
Spectral Range 8 to 14µm
IR Resolution 320 x 240 (76,800 pixels)
Image Presentation and Measurement Analysis
Display 3.5" color IPS
Color Palettes 7 (Ironbow/Rainbow/Rainbow(HC)/Lava/Red-Hot/White-Hot/Black-Hot)
Image Modes Thermal, Visual Image, Picture-in-Picture, Fusion (Thermal Blending)
On-Screen Temperature Markers 3 (Center/High Temp/Low Temp)
Image Measurement Tools 5 Points/3 Rectangles/3 Circles/1 Line (add up to 6)
Emissivity Adjustable (0.01 to 1.00)
Isotherm Yes (Below, Above, Interval)
Temperature Span Automatic/Manual
Temperature Alarm Indicators High/Low (user adjustable)
General Specifications
Image Capture Modes 2 (Single/Time-Lapse)
Display Resolution 640 x 480 pixels
Digital Zoom Yes (2x/4x)
Image Format JPG
LED Flashlight Yes (dual)
External Memory Micro SD card
Auto Shut-Off Yes (user adjustable 5/10/20/30/45/60/90 minutes)
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 3.7V/5200mAh rechargeable Li-ion battery
Battery Life Approx. 3.5 hours
Charge System In Camera or Battery (USB-C)
Charge Time Approx. 4 hours
PC Connectivity USB Cable (USB-C)
Software Yes (download from website)
Software Functionality Image Analysis/Live Camera Feed/Report Generation
Software OS Compatability Windows Vista/7/8/10/11
Supported Languages English, French, German and Spanish
Product Certifications CE, UKCA, IP54, 6.6' (2m) drop test
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating/Storage Humidity Range 10 to 95%
Maximum Operating Altitude 6561' (2000m)
Dimensions 10.2 x 3.9 x 3.8" (260 x 99 x 97mm)
Weight 1.4lbs (630g)
Click here for complete specifications on the REED R2170

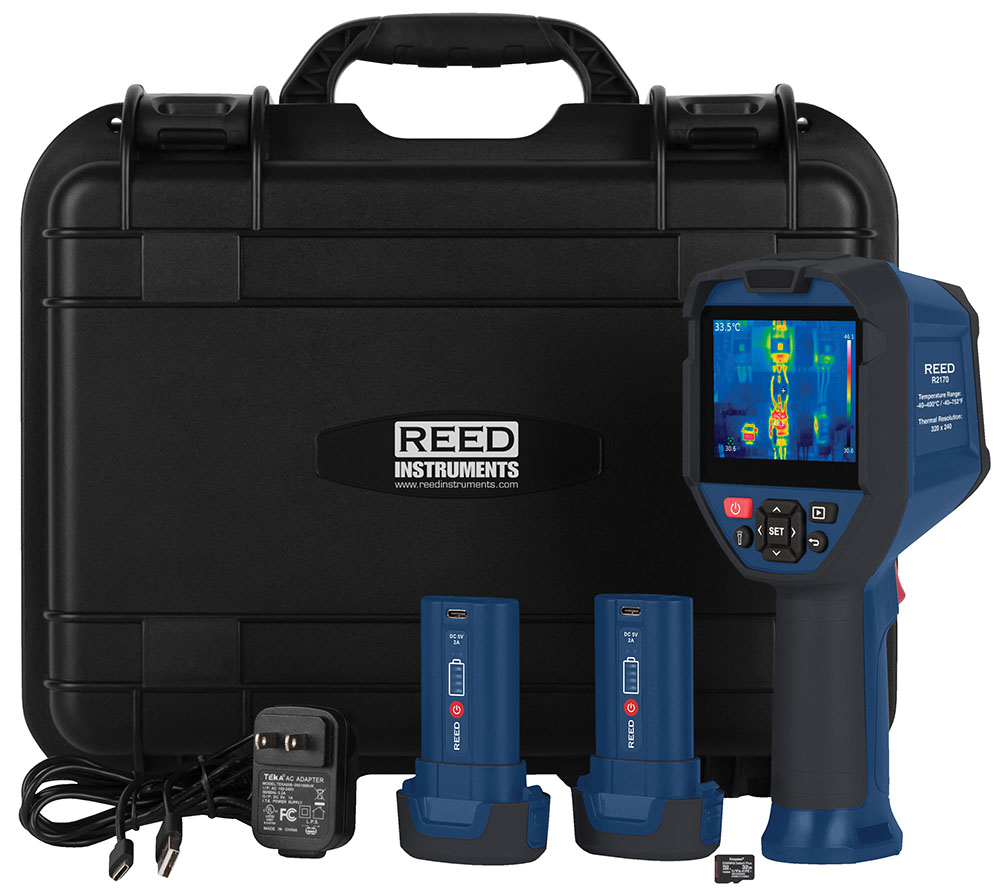

What's included with the REED R2170

  • Thermal Imaging Camera
  • USB (Type-C) Cable
  • Power Adapter
  • 2 x Rechargeable Batteries
  • 32GB Micro SD Card
  • Hard Carrying Case

Ideal Applications for the REED R2170

  • Home and building inspection
  • Plant and general maintenance
  • Electrical and mechanical inspection
  • Predictive maintenance
  • HVAC/R and plumbing
  • Automotive maintenance
  • Solar panel inspection
  • Equine and veterinary
  • PCBA inspection
  • Road construction

Detect temperatures with the REED R2170 Thermal Imaging Camera


Thermal imaging cameras are devices that translate thermal energy (heat) into visible light in order to analyze a particular object or scene. To do so, the R2170 offers a 320 x 240 infrared resolution (76,800 pixels) so you get a crisp reading. Need a specific color palette to view your readings? The R2170 offers you a choice of 7 different color palettes. Don't ever be worried about dropping this thermal imaging camera as it is drop tested to 6.5' (2m)! Save yourself a lot of work by quickly view stored data and create reports with the included software. The REED R2170 Thermal Imaging Camera comes complete with a USB (Type-C) cable, 32GB micro SD card & hard carrying case. The R2170 is best in class value! Watch the full video to see why.

Click on a category to view a selection of compatible accessories with the REED R2170 Thermal Imaging Camera, 320 x 240.

REED R2170-3.7V Replacement Battery for the R2170 R2170-3.7V
For use with the REED R2170 Thermal Imaging Camera.




REED RSD-16GB Micro SD Memory Card w/Adapter, 16GB RSD-16GB
For use with REED SD Series Data Loggers.




REED R1500 Tripod R1500
Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.




REED R8890 Large Hard Carrying Case R8890
Professional grade, injection molded hard plastic case with customizable foam inserts.




Ask a question about REED R2170 Thermal Imaging Camera, 320 x 240
