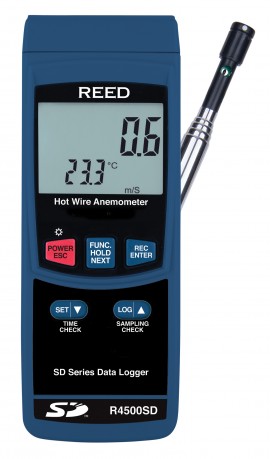

REED R4500SD Data Logging Hot Wire Thermo-Anemometer

Model: R4500SD | UPC: 800837004741

Downloads:

REED R4500SD Data Logging Hot Wire Thermo-Anemometer

Model: R4500SD | UPC: 800837004741

Real time data logger with integrated SD memory card measures/records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input.

Your Price	$549.00 USD
Availability	5 Days57 in Stock
Quantity	Quantity

Traceable Calibration Certificate for your R4500SD Data Logging Hot Wire Thermo-Anemometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIANE2) for only $325.00 USD

Traceable Calibration Certificate for your R4500SD Data Logging Hot Wire Thermo-Anemometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIANE2) for only $325.00 USD

Recommended Accessories

REED CA-05A Medium Soft Carrying Case

CA-05A

REED R2920 Type K Surface Probe

R2920

REED R1500 Tripod

R1500

REED RSD-16GB Micro SD Memory Card w/Adapter, 16GB

RSD-16GB

REED RSD-ADP-EU AC Adapter, 220V

RSD-ADP-EU

REED R4500SD-PROBE Replacement Telescoping Hot Wire Probe

R4500SD-PROBE

REED R4500SD Offers

The R4500SD measures air velocity, air temperature and has a built-in contact thermometer. Featuring automatic temperature compensation, Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

Features

Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
Contact temperature measurement with type J/K thermocouple option
Thermistor sensor for fast air temperature readings
Hot wire probe for precise low air velocity measurements
Real-time data logger with integrated SD memory card
User selectable sampling rate from 1 to 3600 seconds
Easy-to-read backlit LCD display
Data hold and Min/Max functions
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

REED R4500SD Specifications

Type	Hot Wire
Measuring Ranges	fpm: 40 to 4921 m/s: 0.2 to 25 km/h: 0.7 to 90 mph: 0.5 to 55.9 knots: 0.4 to 48.6
Air Temperature	32 to 122°F (0 to 50°C)
Type K Temperature	-148.0 to 2372.0°F (-100.0 to 1300°C)
Type J Temperature	-148.0 to 2192.0°F (-100.0 to 1200°C)
Accuracy	Air Velocity: ±(5% rdg + 20 fpm, 0.2 m/s, 0.3 km/h, 0.2 mph, 0.2 knot) Air Temperature: ±0.8°C (1.5°F) Contact Temperature: ≥-58°F (-50°C) ±(0.4% + 1°F (0.5°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C))
Resolution	fpm: 1 m/s, km/h, mph, knot: 0.1
Temperature	0.1°F/°C
Telescope Probe Length	11 to 37" (280 to 940mm)
Response Time	<1 second
Display	5-digit, Dual LCD Display
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Selectable Sampling Rate	Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds)
External Memory	Yes, expandable up to 16GB with SD card (optional)
SD Card Class Compatibility	Class 4
Auto Shut-off	Yes (after 10 minutes/off)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	6 x AA Batteries or AC Adapter (optional)
Data Output	Yes (RS-232)
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	10 to 80%
Dimensions	8 x 3 x 1.5" (203 x 76 x 38mm)
Weight	1.13lb (515g)

Click here for complete specifications on the REED R4500SD

What's included with the REED R4500SD

Data Logging Hot Wire Thermo-Anemometer
Telescopic Hot Wire Probe
Hard Carrying Case
Batteries

Measure air velocity and air temperature with the R4500SD Data Logging Hot Wire Thermo-Anemometer

Anemometers measure wind speed and are important tools for environmental specialists, who study the way air moves. The R4500SD is a real time data logging thermo-anemometer with an integrated SD memory card that both measures and records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input. This hot wire thermo-anemometer features a thermistor sensor for fast air temperature readings and a hot wire probe for precise low air velocity measurements to save you both time & money. Check out 0:35 in the video to see the many measurements it's capable or recording. Record data, save it on an SD card and quickly generate an Excel file - See 1:01.1. Insert memory card 2. Record the needed data 3. Insert memory card in PC and open with Excel. The REED R4500SD Data Logging Hot Wire Thermo-Anemometer comes complete with a hot wire probe, carrying case and batteries. This meter also has a full list of optional accessories… View the complete list of accessories at 1:34. Want to know more about this meter? View a quick list of the specifications at 1:40.

Meet the SD Series Family of Real-Time Data Loggers

Whatever tool you need for any application, the SD series has something for you! Offering 12 diverse data logging meters, there's at least one meter for every category, whether its for measuring temperature (R2450SD), air temperature & velocity (R4000SD & R4500SD), heat stress (R6250SD), relative humidity (R6050SD), air quality (R9910SD), water quality (R3000SD & R3100SD), sound (R8070SD), light and environmental (R8100SD & R4700SD) & vibration (R7000SD).

Ideal Applications for the REED R4500SD

HVAC/R and refrigeration servicing
Detecting filter blockage
Condensers and chillers

Click on a category to view a selection of compatible accessories with the REED R4500SD Data Logging Hot Wire Thermo-Anemometer.

Carrying Cases

REED CA-05A Medium Soft Carrying Case CA-05A

Features a main instrument compartment and a side pouch for accessories.

REED R8888 Medium Hard Carrying Case R8888

Professional grade, injection molded hard plastic case with customizable foam inserts.

Thermocouple Probes

REED R2950 Type K Immersion Probe R2950

This immersion probe is recommended for immersion applications and is excellent for checking the temperature of water, oils and non-corrosive fluids and gels.

REED R2940 Type K Air/Gas Probe R2940

Specially designed to measure air or gases in heating and cooling units, ovens and engine exhausts.

REED R2930 Type K Right Angle Surface Probe R2930

This unique right angle surface probe design allows for temperature measurement of hard to reach areas. The R2930 is great to monitor temperatures inside pipes and flat surfaces while keeping hands away from heated area.

REED R2920 Type K Surface Probe R2920

This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface.

REED LS-182 Type K Female Connector LS-182

This type k female connector is constructed of glass-filled nylon for increased strength and wear resistance. The LS-182 is rated up 425°F (250°C) and is color coded according to ANSI thermocouple identification standards.

REED LS-181 Type K Male Connector LS-181

This type k male connector is constructed of glass-filled nylon for increased strength and wear resistance. The LS-181 is rated up 425°F (250°C) and is color coded according to ANSI thermocouple identification standards.

REED R2980 Type K Air Oven/Freezer Thermocouple Probe R2980

Versatile air probe specifically designed to monitor ambient air temperatures in various food service equipment including ovens, refrigeration units and freezers. The R2980 features a stainless-steel shield to protect the sensor from touching surfaces and conveying a false measurement.

REED R2970 Type K Pipe Clamp Thermocouple Probe R2970

This Type-K pipe clamp thermocouple probe is designed to easily grip pipes for quick temperature measurements. The R2970 features a spring-loaded jaw for a secure grip on pipes up to 1.4" (35mm) in diameter.

REED TP-01 Type K Beaded Wire Probe TP-01

This Type-K beaded thermocouple wire probe is recommended for basic general purpose temperature applications.

REED R2960 Type K Needle Tip Probe R2960

Medium gauge hypodermic needle tip, used to pierce and measure food, rubbers and solids.

Tripods

REED R1500 Tripod R1500

Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.

Power Supplies

REED RSD-ADP-NA AC Adapter, 110V RSD-ADP-NA

For use with REED SD Series Data Loggers.

REED RSD-ADP-EU AC Adapter, 220V RSD-ADP-EU

For use with REED SD Series Data Loggers.

Memory Cards

REED RSD-16GB Micro SD Memory Card w/Adapter, 16GB RSD-16GB

For use with REED SD Series Data Loggers.

Probes

REED R4500SD-PROBE Replacement Telescoping Hot Wire Probe R4500SD-PROBE

For use with the REED R4500SD & SD-4214 Data Logging Hot Wire Thermo-Anemometers.
