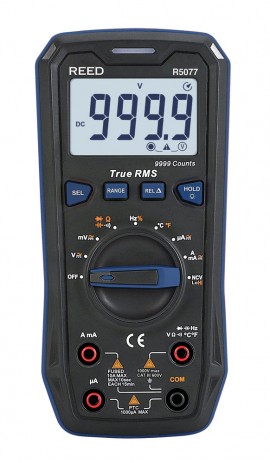

REED R5077 True RMS Digital Multimeter, AC/DC 1000 V

Model: R5077 | UPC: 800837006974

NEW!
REED R5077 True RMS Digital Multimeter, AC/DC 1000 V-

Downloads: datasheet manual

More REED Products

Ask an Expert

REED R5077 True RMS Digital Multimeter, AC/DC 1000 V

Model: R5077 | UPC: 800837006974

True RMS multimeter measures AC/DC voltage, current, frequency, resistance, capacitance, and temperature, and features a built-in non-contact voltage detector.

True RMS multimeter measures AC/DC voltage, current, frequency, resistance, capacitance, and temperature, and features a built-in non-contact voltage detector.

Your Price $79.00 USD
Availability 300 in Stock
Quantity

Recommended Accessories

REED R5400 Line Splitter-

REED R5400 Line Splitter

R5400

REED R2990 Thermocouple Adapter-

REED R2990 Thermocouple Adapter

R2990

REED R1020 Fused Test Lead Set-

REED R1020 Fused Test Lead Set

R1020

REED R2920 Type K Surface Probe-

REED R2920 Type K Surface Probe

R2920

REED R2940 Type K Air/Gas Probe-

REED R2940 Type K Air/Gas Probe

R2940

REED R2960 Type K Needle Tip Probe-

REED R2960 Type K Needle Tip Probe

R2960

REED R5077 Offers

The R5077 Multimeter is capable of measuring AC/DC voltage and current, frequency, resistance, capacitance, and temperature. Built with a non-contact voltage detector, this instrument ensures added safety and convenience, while its rugged, double-molded plastic housing provides durability in various environments.

Features

  • Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
  • Built-in non-contact voltage detector and rugged double molded plastic housing
  • Diode check and continuity functions
  • Relative and data hold functions
  • Backlit LCD and low battery indicator
  • CAT III. 600V safety rating

REED R5077 Specifications

AC/DC Voltage
Range AC/DC: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 999.9V
Accuracy AC: 9.999mV, 99.99mV ±(1% rdg. + 3 dgt.)
999.9mV, 9.999V, 99.99V, 999.9V ±(0.8% rdg. + 3 dgt.)

DC: 9.999mV, 99.99mV ±(0.7% rdg. + 8 dgt.)
999.9mV, 9.999V, 99.99V, 999.9V ±(0.5% rdg. + 3 dgt.)
Resolution AC/DC: 0.001mV, 0.01mV, 0.1mV, 0.001V, 0.01V, 0.1V
AC/DC Current
Range AC/DC: 999.9µA, 999.9mA, 9.999A
Accuracy AC: 999.9µA ±(1.0% rdg. + 3 dgt.)
999.9mA, 9.999A ±(1.2% rdg. + 3 dgt.)

DC: 999.9µA ±(0.8% rdg. + 3 dgt.)
999.9mA, 9.999A ±(1.0% rdg. + 3 dgt.)
Resolution AC/DC: 0.1µA, 0.1mA, 0.001A
Resistance
Range 999.9Ω, 9.999KΩ, 99.99KΩ, 999.9KΩ, 9.999MΩ, 99.99MΩ
Accuracy 999.9Ω, 9.999KΩ, 99.99KΩ, 999.9KΩ: ±(0.8% rdg. + 2 dgt.)
9.999MΩ: ±(1.5% rdg. + 3 dgt.)
99.99MΩ: ±(2.0% rdg. + 5 dgt.)
Resolution 0.1Ω, 0.001KΩ, 0.01KΩ, 0.1KΩ, 0.001MΩ, 0.01MΩ
Capacitance
Range 9.999nF, 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF, 9.999mF
Accuracy 9.999nF: (±4%+10 dgt.)
99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF: ±(4.0% rdg. + 5 dgt.)
9.999mF: ±(10% rdg.)
Resolution 0.001nF, 0.01nF, 0.1nF, 0.001µF, 0.01µF, 0.1µF, 0.001mF
Frequency
Range 99.99Hz to 9.999MHz
Accuracy ±(0.1% rdg. + 5 dgt.)
Resolution 0.01Hz to 0.001MHz
Temperature
Range -40 to 1832°F (-40 to 1000°C)
Accuracy ±(2.5% rdg. + 5°F)
±(2.0% rdg. +5°C)
Resolution 1°F, 1°C
General Specifications
Range Selection Autoranging
True RMS Yes
Display 9,999 count LCD Display
Display Hold Yes
Relative Mode Yes
Diode Test Yes
Backlit Display Yes
Continuity Check Audible signal if resistance ≤30Ω
Duty Cycle Yes (0.1 - 99.9%)
Non-Contact Voltage Detector Yes
Magnetic Hanging Strap Compatible Yes (R5900 sold separately)
Kick Stand Yes
Auto Power Off Yes (after 15 minutes)
Power Supply 3x AA Batteries
Low Battery Indicator Yes
Fuse Protection Yes
Replaceable Test Leads Yes
Overvoltage Category CAT. III 600V
Product Certifications CE, UKCA, ETL
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 14 to 122°F (-10 to 50°C)
Dimensions 7.4 x 3.5 x 2.2" (187 x 88 x 56mm)
Weight 14oz (400g)
Click here for complete specifications on the REED R5077

What's included with the REED R5077

  • Test Leads
  • Thermocouple Wire Probe (Type K)
  • Batteries

Ideal Applications for the REED R5077

  • Troubleshooting electrical systems in residential, commercial, and industrial settings
  • Performing routine maintenance checks on electrical equipment
  • Testing and diagnosing issues in various types of machinery and appliances
  • Verifying electrical connections and installations for safety compliance
  • Conducting repairs and maintenance on HVAC and automotive systems
  • Supporting educational and laboratory environments for electronics training and experiments
  • Assisting in general DIY electrical projects and repairs around the home
datasheet for the REED R5077 True RMS Digital Multimeter, AC/DC 1000 V manual for the REED R5077 True RMS Digital Multimeter, AC/DC 1000 V

Click on a category to view a selection of compatible accessories with the REED R5077 True RMS Digital Multimeter, AC/DC 1000 V.

REED R5400 Line Splitter R5400
Provides safe measurements of current without the need to separate conductors.



REED R2990 Thermocouple Adapter R2990
This adapter converts any Type-K thermocouple temperature probe with a mini-connector to dual shrouded banana plug inputs.



REED R1020 Fused Test Lead Set R1020
Ergonomic comfort grip.



REED R5900 Magnetic Meter Strap R5900
For use with the REED R5007 True RMS Multimeter & R5600 Insulation Tester.



REED R2920 Type K Surface Probe R2920
This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface.



REED R2930 Type K Right Angle Surface Probe R2930
This unique right angle surface probe design allows for temperature measurement of hard to reach areas. The R2930 is great to monitor temperatures inside pipes and flat surfaces while keeping hands away from heated area.



REED R2940 Type K Air/Gas Probe R2940
Specially designed to measure air or gases in heating and cooling units, ovens and engine exhausts.



REED R2950 Type K Immersion Probe R2950
This immersion probe is recommended for immersion applications and is excellent for checking the temperature of water, oils and non-corrosive fluids and gels.



REED R2960 Type K Needle Tip Probe R2960
Medium gauge hypodermic needle tip, used to pierce and measure food, rubbers and solids.
