Multi-purpose intelligent line tracer/tracker identifies and validates cables from source to termination quickly and accurately.
Multi-purpose intelligent line tracer/tracker identifies and validates cables from source to termination quickly and accurately.

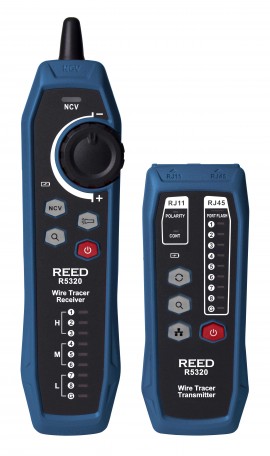

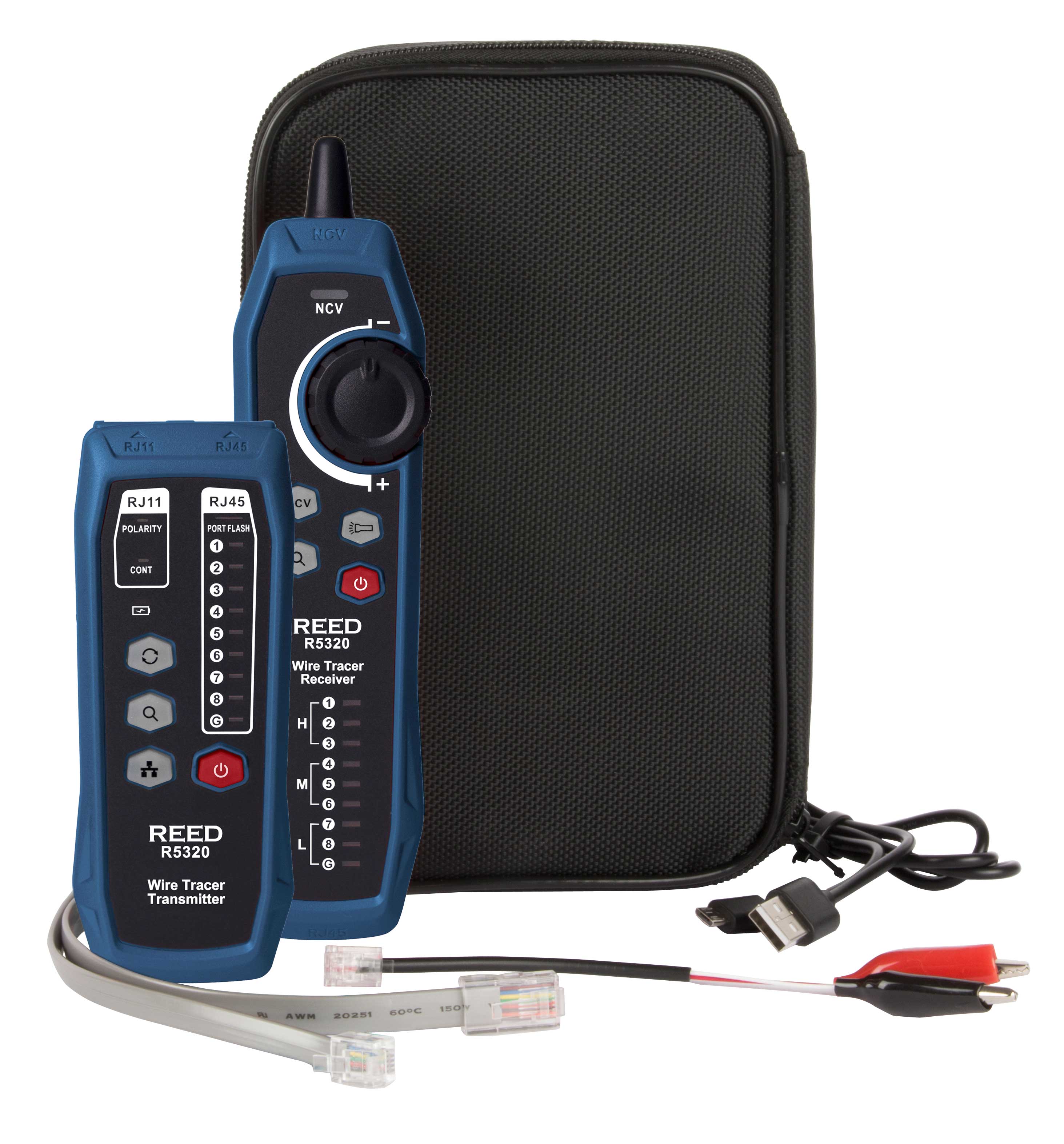

This versatile wire tracer is able to identify and test a variety of wires including RJ45 (Ethernet), RJ11 (Telephone) and any other non-energized wire with the included alligator clip adapter. The R5320 Wire Tracer and Circuit Testing Kit can perform a number of functions including; identifying and locating wires, cable/line connection validation, verifying telephone line continuity and line polarity. It also features a built-in non-contact voltage detector to quickly detect live voltage on electrical circuits found in residential, commercial and industrial buildings.
Features
| Testing Modes | RJ45 (Ethernet) Network cable tracing RJ11 (Telephone) Line tracing Miscellaneous Line/wire tracing (using RJ11/alligator clip adapter) RJ45 (Ethernet) Network cable validation RJ11 (Telephone) Line validation Non-contact voltage detector |
| Transmitter | |
| Port Flashing | Port flashing and wire tracking can be turned on at same time |
| Wire Tracking Signal Frequency | 125kHz |
| Test Speed | Fast (2Hz); Slow (1Hz) |
| Network Wire | Shielded/Unshielded |
| Open-Short Circuit Test | Load <9kΩ: Short Load >17kΩ: Open |
| Open Polarity Test | Test range: DC: 5 to 70V or -70 to -5V |
| Input Protection | 60VDC |
| Receiver | |
| Wire Tracking Sensitivity | RJ11 ≤9842' (3000m) RJ45 ≤328' (100m) |
| Input Impedance | >100MΩ |
| General Specifications | |
| Signal Mode | Modulation signal (125kHz) |
| Visual Indicator | Yes (LEDs) |
| Audible Indicator | Yes (Pulsating beeper) |
| Sensitivity Settings | Yes (Adjustable wheel) |
| Compatible Wire Type | RJ-11, RJ-45, Alligator clips for connection to non-terminated wire |
| Non-Contact Voltage Detector | Yes (40 to 1000VAC) |
| Earphone Jack | Yes (3.5mm) |
| Built-in Flashlight | Yes |
| Auto Shut-off | Transmitter: Yes (after 60 mins) Receiver: Yes (after 10 mins) |
| Power Supply | 1050mAh rechargeable Li-ion battery |
| Charging Time | Approx. 2 hours (Micro-USB) |
| Low Battery Indicator | Yes |
| Battery Life | Transmitter: >8 hours Receiver: >5 hours |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Operating Humidity Range | 20 to 75% |
| Operating Altitude | <6561' (2000m) |
| Product Certifications | CE, RoHS |
| Dimensions | Transmitter: 5.1 x 2 x 1.1" (130 x 51 x 28mm) Receiver: 7.8 x 1.9 x 1.3" (197 x 48 x 34mm) |
| Weight | Transmitter: 3.4oz (95g) Receiver: 4.5oz (127g) |
