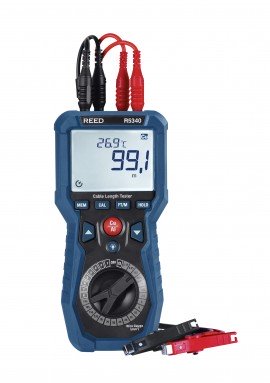

REED R5340 Cable Length Tester

Model: R5340 | UPC: 800837007162

REED R5340 Cable Length Tester

Model: R5340 | UPC: 800837007162

Precise cable length measurements with a range of up to 100 kilofeet (30km).

Precise cable length measurements with a range of up to 100 kilofeet (30km).

Your Price $259.00 USD
Availability 100 in Stock
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your R5340 Cable Length Tester

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your R5340 Cable Length Tester

Recommended Accessories


REED R5340 Offers

This Cable Length Tester has been designed for precise cable length and resistance measurements. It offers a wide range of measurements, including lengths up to 100 kilofeet (30km) with high accuracy and customizable settings for various cable types. The R5340 features a bright, backlit LCD display, and a kickstand or optional magnetic hanging strap (sold separately) for hands-free operation.

Features

  • Measures cable lengths up to 100,000 feet (30km)
  • Resistance measurement ranges of up to 1999.9mΩ
  • 20 preset cable sizes and 8 user-defined sizes
  • 19,999 count backlit LCD display
  • User selectable unit of measure (ft/m)
  • Built-in kickstand
  • Compatible with magnetic hanging strap (sold separately)
  • Overrange indicators
  • Low battery indicator and auto shut-off

REED R5340 Specifications

Length Measurement
Range 1999.9 m
19.999, 30.00 km
1999.9, 19.999 ft
100.00 kft
Accuracy 1999.9 m: ±(1.0% rdg. +1 m)
19.999 km: ±(1.0% rdg. +0.05 km)
30.00 km: ±(1.2% rdg. +0.10 km)
1999.9 ft: ±(1.0% rdg. +3 ft)
19.999 ft: ±(1.0% rdg. +0.16 kft)
100.00 kft: ±(1.2% rdg. +0.33 kft)
Resolution 0.1, 1 m
0.01 km
0.1, 1, 0.01 ft
Resistance Measurement
Range 1999.9, 199.99, 19.999 Ω
1999.9 mΩ
Accuracy 1999.9 Ω: ±(1% rdg. +6 dgt.)
199.99 Ω: ±(1% rdg. +50 mΩ)
19.999 Ω: ±(1% rdg. +5 mΩ)
1999.9 mΩ: ±(1% rdg. +3 dgt.)
Resolution 0.001, 0.01, 0.1, 1 Ω
0.1 mΩ
Temperature
Range 23 to 122°F (-5 to 50°C)
Accuracy ±(2.0% rdg. +3.5°F)
±(2.0% rdg. +1.8°C)
Resolution 0.1°F, 0.1°C
General Specifications
Preset Cable Gauge Sizes 20
Customizable Cable Gauge Sizes 8
Unit of Measure Imperial and Metric
Display 19,999 count LCD display
Display Hold Yes
Backlit Display Yes
Over-Range Indicator Yes ("0L")
Test Lead Length 4' (1.21 m)
Magnetic Hanging Strap Compatible Yes (R5900 sold separately)
Kick Stand Yes
Auto Shut-Off Yes (after 15 mins)
Power Supply 6 x AA Batteries
Low Battery Indicator Yes
Product Certifications CE
Operating Altitude 7000' (2000 m)
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 10 to 80%
Storage Temperature -4 to 140°F (-20 to 60°C)
Storage Humidity 10 to 80%
Dimensions 8.3 x 3.9 x 2.6" (212 x 100 x 67 mm)
Weight 1.32 lbs (600 g)
Click here for complete specifications on the REED R5340

What's included with the REED R5340

  • Test Leads and Clips
  • Copper Rod
  • Carrying Case
  • Batteries

Ideal Applications for the REED R5340

  • Cable length verification during installation and maintenance projects
  • Resistance testing to ensure cable integrity and reliability
  • Troubleshooting and diagnosing electrical faults in cables
  • Industrial and commercial wiring assessments
  • Quality control checks in manufacturing and production environments
  • Use in telecommunications and data cabling installations
