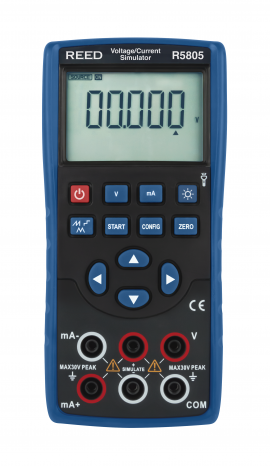

REED R5805 Voltage/Current Simulator

Model: R5805 | UPC: 800837007049

REED R5805 Voltage/Current Simulator

Model: R5805 | UPC: 800837007049

This voltage/current simulator sources voltage and current and has a 6-digit LCD readout.

This voltage/current simulator sources voltage and current and has a 6-digit LCD readout.

Your Price $449.00 USD
Availability 5 in Stock
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your R5805 Voltage/Current Simulator

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your R5805 Voltage/Current Simulator

REED R5805 Offers

The R5805 Voltage/Current Simulator has been designed to accurately source both voltage and current for a wide range of testing and calibration needs. Featuring a clear 6-digit LCD display and a convenient kickstand, it ensures easy readability and hands-free operation in various environments.

Features

  • Sources voltage and current
  • Easy to read 6-digit LCD display
  • Built-in LED flashlight
  • Automatic calibration
  • Low battery indicator and auto shut off

REED R5805 Specifications

DC Voltage
Range 10V
Output Range -1.000 to 11.000V
Resolution 0.001V
Accuracy ±0.05% rdg. +2mV
DC Current
Range 30mA
Output Range 0.000 to 30.000mA
Resolution 0.001mA
Accuracy ±0.05% rdg. +4μA
General Specifications
Display 6-Digit LCD
Backlit Display Yes
Kick Stand Yes
Magnetic Hanger Compatible Yes (R5900 sold separately)
Built-In Flashlight Yes
Zero Adjustment Button Yes
Power Supply 3 AA Batteries
Battery Life Approx. 20 hours
Cold Junction Compensation Yes
Auto shut off Yes (up to 60 minutes/off)
Low Battery Indicator Yes
Replaceable Test Leads Yes
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Operating Humidity Range 0 to 85%
Storage Temperature 14 to 122°F (-10 to 50°C)
Dimensions 7.5 x 3.5 x 2.1" (191 x 90 x 53mm)
Weight 17.6oz (500g)
Click here for complete specifications on the REED R5805

What's included with the REED R5805

  • Voltage/Current Simulator
  • Test Leads
  • Alligator Clips
  • Batteries

Ideal Applications for the R5805

  • Testing and calibrating meters, data loggers, and process controllers
  • Simulating sensor outputs for troubleshooting and diagnostics
  • Configuring and verifying industrial control systems
  • Providing precise voltage/current signals for automation testing
  • Validating performance of power supplies and electrical circuits
  • Ensuring accuracy in instrumentation used in HVAC, energy, and utilities
  • Conducting educational and training demonstrations in electronics and electrical engineering
