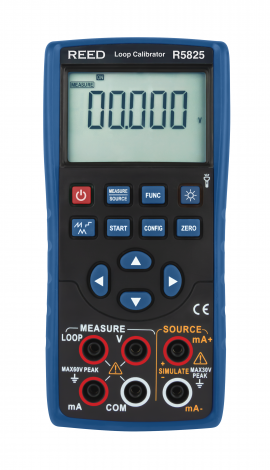

This loop calibrator features mA sourcing, simulation and measurement. It has a 24V loop power supply and selectable step or ramp outputs.
This loop calibrator features mA sourcing, simulation and measurement. It has a 24V loop power supply and selectable step or ramp outputs.
This loop calibrator has been designed to provide precise mA sourcing and measurement. With 0-30 VDC measurement capabilities, it ensures reliable loop voltage checks and offers exceptional accuracy of 0.02% for measurement and 0.05% for sourcing. The calibrator allows for precise mA and % simulation with a 0.001% display span, along with selectable step or ramp outputs.
Features
| DC Voltage Measurement | |
| Range | 30V |
| Output Range | -30.000 to 30.000V |
| Resolution | 0.001V |
| Accuracy | ±0.02% rdg. + 2mV |
| DC Current Measurement | |
| Range | 30mA |
| Output Range | -30.000mA to 30.000mA |
| Resolution | 0.001mA |
| Accuracy | ±0.02% rdg. + 4μA |
| Current Output | |
| Range | 30mA |
| Output Range | 0.000 to 30.000mA |
| Resolution | 0.001mA |
| Accuracy | ±0.05% rdg. + 4μA |
| Analog Transducer Output | |
| Loop Power | 24V |
| Accuracy | ±10% |
| General Specifications | |
| Display | 6-Digit LCD |
| Backlit Display | Yes |
| Kick Stand | Yes |
| Magnetic Hanger Compatible | Yes (R5900 sold separately) |
| Built-In Flashlight | Yes |
| Zero Adjustment Button | Yes |
| Power Supply | 3 AA Batteries |
| Battery Life | Approx. 20 hours |
| Cold Junction Compensation | Yes |
| Auto shut off | Yes (up to 60 minutes/off) |
| Low Battery Indicator | Yes |
| Replaceable Test Leads | Yes |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Operating Humidity Range | 0 to 85% |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions | 7.5 x 3.5 x 2.1" (191 x 90 x 53mm) |
| Weight | 17.6oz (500g) |
