REED R7800 Coating Thickness Gauge

Model: R7800 | UPC: 800837004475

REED R7800 Coating Thickness Gauge-

Downloads:

More REED Products

Ask an Expert

REED R7800 Coating Thickness Gauge

Model: R7800 | UPC: 800837004475

Automatically identifies ferrous and non-ferrous substrates.

Automatically identifies ferrous and non-ferrous substrates.

Your Price $299.00 USD
Availability 88 in Stock
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your R7800

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your R7800

Recommended Accessories

REED CA-52A Small Soft Carrying Case-

REED CA-52A Small Soft Carrying Case

CA-52A

REED R8888 Medium Hard Carrying Case-

REED R8888 Medium Hard Carrying Case

R8888

REED R9050 Coating Thickness Calibration Kit-

REED R9050 Coating Thickness Calibration Kit

R9050

REED R7800 Offers

This coating thickness gauge is designed for non‐invasive coating thickness measurements. The R7800 features zero or two point calibration, user adjustable high/low alarms and a USB interface to further analyse results in the included software.

Features

  • Automatically detects ferrous and non-ferrous substrates
  • Integral probe measures non-magnetic and non-conductive coatings on steel substrates
  • Easy-to-read color LCD display
  • 360° screen rotation allows users to view measured readings from any angle
  • Durable gauge and probe construction
  • Zero and two-point calibration ensures measurement accuracy
  • Single or multi-point mode allows a user to set tolerances and quickly identify whether a coating passes or fails
  • Tri-color LEDs quickly indicate when measurements are below (red), above (yellow) or within set parameters (green)
  • Internal memory stores up to 500 groups of data
  • View stored data, charts or real-time measurement with software
  • Low battery indication and auto shut off

REED R7800 Specifications

Measuring Range 0 to 1250μm
0.1 to 49.2mils
Accuracy 0 to 1250μm: ±3% +1μm
0 to 49.21mils: ±3% +0.04mils
Resolution 0 to 99.9μm: 0.1μm
100 to 1250μm: 1μm
0 to 4.99mils: 0.01mils
5.0 to 49.2mils: 0.1mils
Measurement Modes Single and Continuous
Display 4-digit color LCD display
Resolution 320 x 240 pixels
Backlit Display Yes (5 levels)
Min/Max/Average Readings Yes
Minimum Curvature Radius 5mm (196.85mils)
Minimum Area Diameter 20mm (787.40mils)
Minimum Substrate Thickness 0.5mm (19.69mils)
Auto Shut-Off Yes (After 5 minutes)
Low Battery Indicator Yes
Power Supply 2 x AA Batteries
Internal Memory Yes (Up to 500 groups)
PC Connectivity USB Cable
Software Yes
Software OS Compatibility Windows 7/8/10/11
Product Certifications CE
Refresh Rate 0.5 seconds (continuous mode)
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range ≤80%RH
Dimensions 5.9 x 2.6 x 1.38" (152 x 65 x 35mm)
Weight 6.35oz (180g)
Click here for complete specifications on the REED R7800

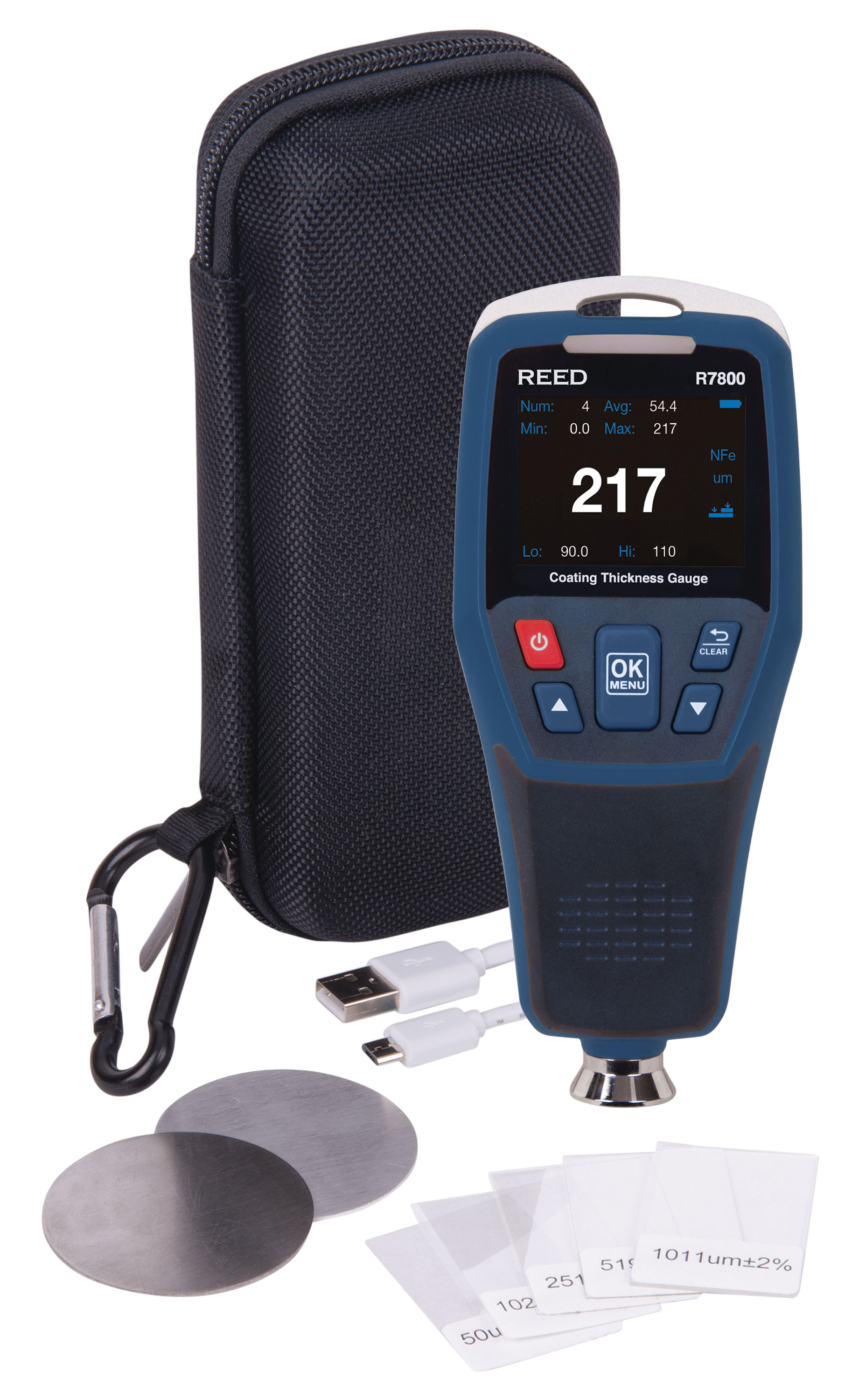

What's included with the REED R7800

  • Coating Thickness Gauge
  • Ferrous Substrate
  • Non-Ferrous Substrate
  • 5 Reference Films
  • USB Cable
  • Wrist Strap
  • Sensor Cover
  • Batteries
  • Hard Carrying Case

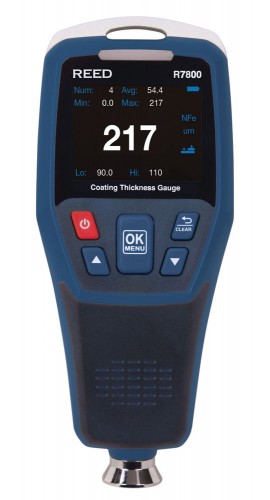

R7800 Coating Thickness Gauge


The R7800 automatically detects ferrous and non-ferrous substrates. It features an easy-to-read color LCD display, a 360° screen rotation and zero and two-point calibration ensures accuracy. The tri-color LEDs indicate when measurements are below, above or within set parameters and the internal memory stores up to 500 groups of data. The user can view stored data, charts or measure in real-time with the included software.

Coating Thickness Gauge Software for REED R7800


With the R7800 software, the user will be able to datalog in real-time, load recorded data, export to Excel, generate graphs and histograms, and export to PDF.

Ideal Applications for the REED R7800

  • Verification of paint thickness
  • Automotive industry
  • Plating thickness
  • Industrial manufacturing
  • Metal processing
  • Aerospace
  • Scientific research

Click on a category to view a selection of compatible accessories with the REED R7800 Coating Thickness Gauge.

REED CA-52A Small Soft Carrying Case CA-52A
Features a main instrument compartment and a side pouch for accessories.



REED R8888 Medium Hard Carrying Case R8888
Professional grade, injection molded hard plastic case with customizable foam inserts.



REED R9050 Coating Thickness Calibration Kit R9050
For use with coating thickness gauges.
