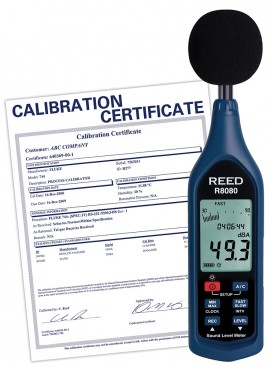

Quick-responding triple-range sound level meter with large backlit display, analog bargraph and built-in memory to data log up to 64,000 points. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Quick-responding triple-range sound level meter with large backlit display, analog bargraph and built-in memory to data log up to 64,000 points. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
This data logging sound level meter has the ability to record samples on internal memory and keep track of registered readings with a time and date stamp. The R8080 features user selectable sampling rates and the option to track live measurements via the included PC interface software.
This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Features
| Measuring Ranges | 30-130 dB Low: 30-90dB Med: 50 -110 dB High: 70 -130 dB Full: 30-130 dB |
| Dynamic Range | 60 dB (in each range) |
| Accuracy | ±1.4 dB |
| Resolution | Digital: 0.1 dB Analog: 2dB |
| Response Time | Digital: 500ms Analog: 50ms |
| Frequency Range | 20 Hz to 8 kHz |
| Frequency Weighting | A, C |
| Time Weighting | Fast/Slow (125ms and 1s) |
| Microphone | 0.5" (12.7mm) electret condenser |
| Digital Analog Bargraph | Yes (30 segment) |
| Display | 4-digit LCD |
| Backlit Display | Yes |
| Min | Yes |
| Max | Yes |
| Alarm Indicators | Under and Over (visual on-screen) |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | Yes (between 1s and 60s) |
| Internal Memory | 1mb (64,000 datapoints) |
| Auto Shut-off | Yes (after 30 mins/off) |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 4 x AAA batteries |
| Output | Yes (AC/DC) |
| Battery Life | Approx 50 hours |
| PC Connectivity | USB |
| Software OS Compatibility | Windows XP / Vista / 7 / 8 / 10 / 11 |
| Product Certifications | CE, IEC 61672-1 Class 2, ANSI S1.4 Type 2 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10-90% |
| Dimensions | 10.4 x 2.5 x 1" (264 x 63 x 29mm) |
| Weight | 8.8oz (245g) |
Click on a category to view a selection of compatible accessories with the REED R8080 Sound Level Meter/Data Logger,.
