Measures light intensity up to 40,000 fc / 400,000 lx.
Measures light intensity up to 40,000 fc / 400,000 lx.

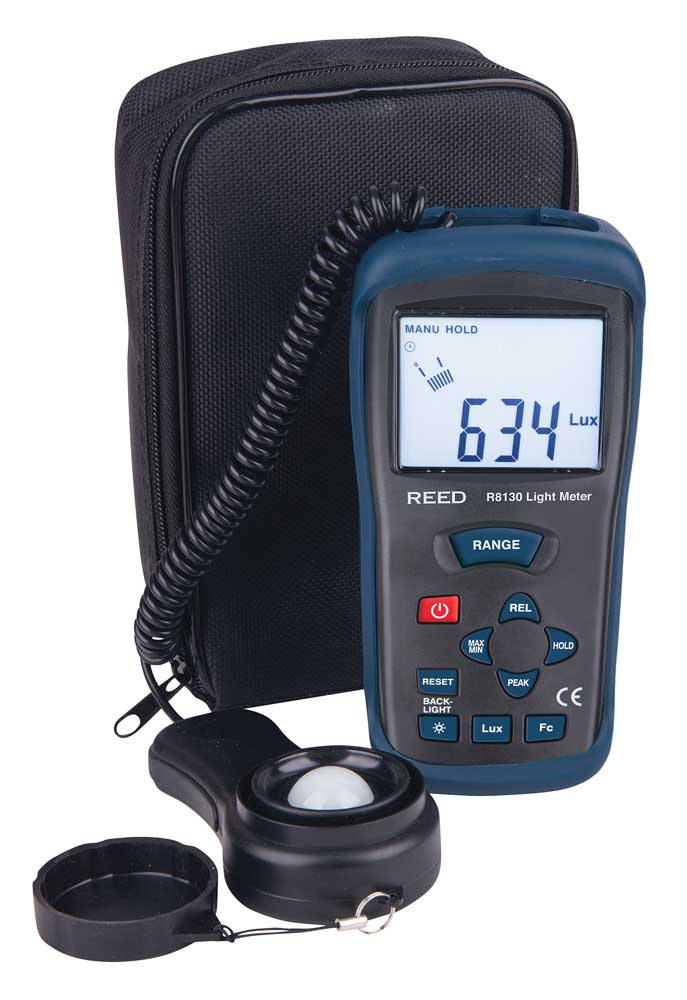

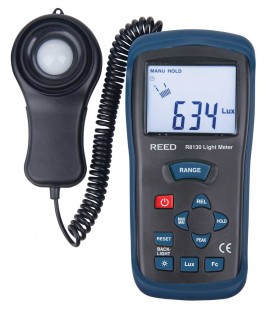

This light meter is capable of measuring in both Foot-candle (fc) and lx. The R8130 features an LCD display with a 42-segment analog bargraph, data hold, min/max, peak and relative functions. The tethered sensor allows for flexible operation while taking measurements.
Features
| Measuring Ranges | lx: 0 to 400,000 fc: 0 to 40,000 |
| Accuracy | ±(5% rdg.+ 0.5% Full Scale) |
| Repeatability | ±3% |
| Resolution | lx/fc: 0.01 (Max resolution) |
| Response Time | Bargraph: 13.3 times/second Numeric display: 1.3 times/second |
| Sensor Type | Photo diode with spectral response filter |
| Spectral Response | CIE Photopic (CIE Human Response Curve) |
| Spectral Accuracy | CIE Vλ function f1'≤6% |
| Cosine Response | f2' ≤2% |
| Display | 3 3/4" (3999) digit LCD |
| Digital Analog Bargraph | Yes (42 segment) |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min, Max and Relative Mode | Yes |
| Peak Hold | Yes |
| Overrange Indicator | Yes |
| Auto Shut-Off | Yes (after 30 mins) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 9V battery |
| Product Certifications | CE |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 50°C) |
| Operating Humidity Range | 10 to 80% |
| Dimensions | 7.4 x 2.5 x 1" (188 x 64.5 x 24.5mm) |
| Weight | 14.2oz (403g) |
