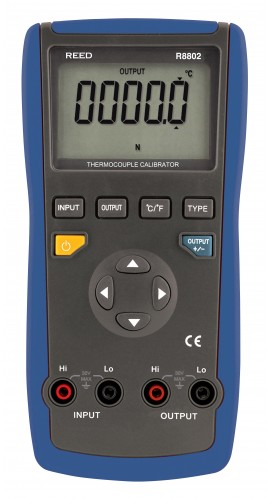

This Thermocouple Calibrator is a hand-held, battery-operated calibrator used for calibration (output) or indication (input) of thermocouple or DC voltage devices. It is operable with eight types of thermocouples.
This Thermocouple Calibrator is a hand-held, battery-operated calibrator used for calibration (output) or indication (input) of thermocouple or DC voltage devices. It is operable with eight types of thermocouples.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Thermocouples are the most common type of industrial temperature sensor used today and because they are available in a number of different combinations of metals or calibrations, choosing the right sensor calibration and maintaining that calibration over time is critical; thus making the R8802 thermocouple calibrator an essential tool for temperature measurement, verification and calibration.
Features
| Output Specifications | |||
| I/O Type | Temp. Range | Res'n | Output Acc'y |
| J T/C | -210 to 1200°C -346 to 2192°F | 0.1°C 0.1°F | ≤ -100°C: ±0.03% ±1.5°C > -100°C: ±0.03% ±1°C ≤ -148°F: ±0.03% ±2.7°F < |
| K T/C | -200 to 1372°C -328 to 2502°F | 0.1°C 0.1°F |
|
| T T/C | -200 to 400°C -328 to 752°F | 0.1°C 0.1°F |
|
| E T/C | -200 to 1000°C -328 to 1832°F | 0.1°C 0.1°F |
|
| N T/C | -200 to 1300°C -328 to 2372°F | 0.1°C 0.1°F |
|
| R T/C | -40 to 1768°C -40 to 3214°F | 1°C 1°F | ≤ 100°C: ±0.03% ±3°C > 100°C: ±0.03% ±2°C ≤ 212°F: ±0.03% ±5°F > 212&d |
| S T/C | -20 to 1763°C -4 to 3205°F | 1°C 1°F |
|
| B T/C | 400 to 1820°C 752 to 3308°F | 1°C 1°F |
|
| mV | -100 to 100mV | 0.01mV | ±0.03% ±2 dgt. |
| Measurement Specifications | |||
| I/O Type | Temp. Range | Res'n | Output Acc'y |
| J T/C | -210 to 1200°C -346 to 2192°F | 0.1°C 0.1°F | ≤ -100°C: ±0.03% ±1.5°C > -100°C: ±0.03% ±1°C ≤ -148°F: ±0.03% ±2.7°F < |
| K T/C | -200 to 1372°C -328 to 2502°F | 0.1°C 0.1°F |
|
| T T/C | -200 to 400°C -328 to 752°F | 0.1°C 0.1°F |
|
| E T/C | -200 to 1000°C -328 to 1832°F | 0.1°C 0.1°F |
|
| N T/C | -200 to 1300°C -328 to 2372°F | 0.1°C 0.1°F |
|
| R T/C | -40 to 1768°C -40 to 3214°F | 0.1°C 0.1°F | ≤ 100°C: ±0.03% ±3°C > 100°C: ±0.03% ±2°C ≤ 212°F: ±0.03% ±5°F > 2 |
| S T/C | -20 to 1763°C -4 to 3205°F | 0.1°C 0.1°F |
|
| B T/C | 400 to 1820°C 752 to 3308°F | 0.1°C 0.1°F |
|
| mV | -100 to 100mV | 0.01mV | ±0.03% ±2 dgt. |
| General Specifications | |||
| Temperature Coefficient | ±0.005% x measuring range /°C (0 to 18°C & 28 to 50°C) | ||
| Cold Junction Tolerance | ±0.5°C (10 to 50°C) | ||
| Power Supply | Single 9V battery | ||
| Dimensions | 193 x 96 x 47mm | ||
| Weight | 410g | ||
Temperature measurement is an important factor for many applications and thermocouple sensors are a commonly used sensor in applications including chemical production,petroleum refineries, manufacturing, power production, steel and iron industry, and many more.
| Output Specifications | |||
| I/O Type | Temp. Range | Res'n | Output Acc'y |
| J T/C | -210 to 1200°C -346 to 2192°F | 0.1°C 0.1°F | ≤ -100°C: ±0.03% ±1.5°C > -100°C: ±0.03% ±1°C ≤ -148°F: ±0.03% ±2.7°F < |
| K T/C | -200 to 1372°C -328 to 2502°F | 0.1°C 0.1°F |
|
| T T/C | -200 to 400°C -328 to 752°F | 0.1°C 0.1°F |
|
| E T/C | -200 to 1000°C -328 to 1832°F | 0.1°C 0.1°F |
|
| N T/C | -200 to 1300°C -328 to 2372°F | 0.1°C 0.1°F |
|
| R T/C | -40 to 1768°C -40 to 3214°F | 1°C 1°F | ≤ 100°C: ±0.03% ±3°C > 100°C: ±0.03% ±2°C ≤ 212°F: ±0.03% ±5°F > 212&d |
| S T/C | -20 to 1763°C -4 to 3205°F | 1°C 1°F |
|
| B T/C | 400 to 1820°C 752 to 3308°F | 1°C 1°F |
|
| mV | -100 to 100mV | 0.01mV | ±0.03% ±2 dgt. |
| Measurement Specifications | |||
| I/O Type | Temp. Range | Res'n | Output Acc'y |
| J T/C | -210 to 1200°C -346 to 2192°F | 0.1°C 0.1°F | ≤ -100°C: ±0.03% ±1.5°C > -100°C: ±0.03% ±1°C ≤ -148°F: ±0.03% ±2.7°F < |
| K T/C | -200 to 1372°C -328 to 2502°F | 0.1°C 0.1°F |
|
| T T/C | -200 to 400°C -328 to 752°F | 0.1°C 0.1°F |
|
| E T/C | -200 to 1000°C -328 to 1832°F | 0.1°C 0.1°F |
|
| N T/C | -200 to 1300°C -328 to 2372°F | 0.1°C 0.1°F |
|
| R T/C | -40 to 1768°C -40 to 3214°F | 0.1°C 0.1°F | ≤ 100°C: ±0.03% ±3°C > 100°C: ±0.03% ±2°C ≤ 212°F: ±0.03% ±5°F > 2 |
| S T/C | -20 to 1763°C -4 to 3205°F | 0.1°C 0.1°F |
|
| B T/C | 400 to 1820°C 752 to 3308°F | 0.1°C 0.1°F |
|
| mV | -100 to 100mV | 0.01mV | ±0.03% ±2 dgt. |
| General Specifications | |||
| Temperature Coefficient | ±0.005% x measuring range /°C (0 to 18°C & 28 to 50°C) | ||
| Cold Junction Tolerance | ±0.5°C (10 to 50°C) | ||
| Power Supply | Single 9V battery | ||
| Dimensions | 193 x 96 x 47mm | ||
| Weight | 410g | ||
Temperature measurement is an important factor for many applications and thermocouple sensors are a commonly used sensor in applications including chemical production,petroleum refineries, manufacturing, power production, steel and iron industry, and many more.
