LEDs display motor rotation and phase status.
LEDs display motor rotation and phase status.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.

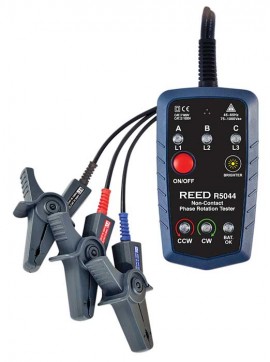

This motor rotation and 3-phase tester is capable of identifying phase orientation (clockwise or counter-clockwise). The R5044 features non-metal alligator clips that allow for safe non-contact measurements and includes back mounted magnets for easy measurement.
Features
| Voltage Detection Method | Static Induction |
| Voltage Range | 75 to 1000VAC |
| Frequency | 45 to 65Hz |
| General Specifications | |
| Cable Length | 31.5" (800mm) |
| Cable Color | Red (L1)/ Black (L2)/ Blue (L3) |
| Indicators | Audible (Buzzer)/ Visual (LED) |
| Adjustable LED Brightness | Yes |
| Max. Alligator Clip Jaw Opening | 1.18" (30mm) |
| Magnetic Mounts | Yes |
| Auto Shut Off | Yes (after 5 minutes without power detection) |
| Power Supply | 9V battery |
| Low Battery Indicator | Yes |
| Overvoltage Category | CAT. III 1000V, CAT. IV 600V |
| Product Certifications | CE |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 80% |
| Dimensions | 5 x 2.8 x 1.8" (128 x 72 x 46 mm) |
| Weight | 13.2 oz (375 g) |
