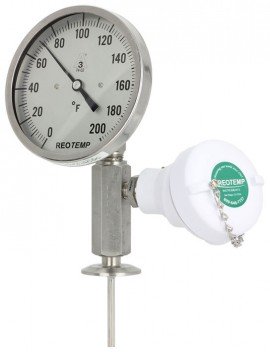

With two independent sensors in one thermowell for easy tie-in to process controls, this thermometer is a convenient, multi-purpose indicator for local and remote temperature monitoring. In addition, it features a 3" (76.2 mm) dial with an adjustable angle case, 9" (228.6 mm) stem length, and 0 to 200°F/-10 to 90°C temperature range.
With two independent sensors in one thermowell for easy tie-in to process controls, this thermometer is a convenient, multi-purpose indicator for local and remote temperature monitoring. In addition, it features a 3" (76.2 mm) dial with an adjustable angle case, 9" (228.6 mm) stem length, and 0 to 200°F/-10 to 90°C temperature range.
Features
Applications
| Temperature Range | 0 to 200°F and -10 to 90°C |
| Accuracy | ±1% of full scale |
| Over Range | 50% over range to 550°F, 1000°F maximum |
| RTD | Pt/385/Class B 100 Ω Accuracy: 0.12%°C Temperature limits: -100 to 900°F |
| Process Connection | ½" NPT |
| External Reset | Slotted hex screw |
| Lens | Glass |
| Hermetic Seal | Bimetal thermometer per ASME B40.3 |
| Thermowell | Fits any standard 0.385" (9.78 mm) bore thermowell |
| Head Orientation | RTD head is mounted to the right of the bimetal thermometer |
| Case and Bezel | 316SS Case style: Adjustable angle connection |
| Dial Size | 3" (76.2 mm) |
| Stem | Material: 304SS Diameter: ⅜" (9.53 mm) Length: 9" (228.6 mm) |
