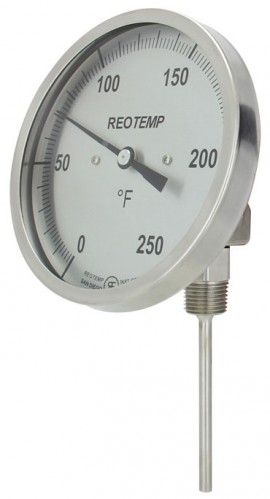

Reliable and accurate, this thermometer requires no electricity or wiring, allows easy temperature monitoring from any position, and is ideal for local indication. In addition, it features a 3" (76.2 mm) dial size, 4" (101.6 mm) stem length, 50 to 300°F/10 to 150°C temperature range, and a calibration screw on the back for recalibration.
Reliable and accurate, this thermometer requires no electricity or wiring, allows easy temperature monitoring from any position, and is ideal for local indication. In addition, it features a 3" (76.2 mm) dial size, 4" (101.6 mm) stem length, 50 to 300°F/10 to 150°C temperature range, and a calibration screw on the back for recalibration.
Features
Applications
| Temperature Range | 50 to 300°F and 10 to 150°C |
| Accuracy | ±1% full scale (ASME B40.3) |
| Mounting Connection | ½" NPT |
| Temperature Sensing Area | Last 2 to 4" (50.8 to 101.6 mm) of the stem |
| Immersion | Minimum 2" (50.8 mm) in liquid, and 4" (101.6 mm) in gas |
| Lens | Glass |
| Head, Bezel, and Stem Material | 300 series stainless steel |
| Environmental Protection | IP67, NEMA 6 rated (hermetically sealed per ASME B40.3) |
| Operating Conditions | Head temperature should not exceed 200°F (93°C) Stem should not be exposed to continuous temperatures exceeding 50% overrange or 800°F (426°C) |
| Dial | Size: 3" (76.2 mm) Material: Black marks on satin matte aluminum finish |
| Stem | Length: 4" (101.6 mm) Diameter: ¼" (6.35 mm) |
| Temperature Range | 50 to 300°F and 10 to 150°C |
| Accuracy | ±1% full scale (ASME B40.3) |
| Mounting Connection | ½" NPT |
| Temperature Sensing Area | Last 2 to 4" (50.8 to 101.6 mm) of the stem |
| Immersion | Minimum 2" (50.8 mm) in liquid, and 4" (101.6 mm) in gas |
| Lens | Glass |
| Head, Bezel, and Stem Material | 300 series stainless steel |
| Environmental Protection | IP67, NEMA 6 rated (hermetically sealed per ASME B40.3) |
| Operating Conditions | Head temperature should not exceed 200°F (93°C) Stem should not be exposed to continuous temperatures exceeding 50% overrange or 800°F (426°C) |
| Dial | Size: 3" (76.2 mm) Material: Black marks on satin matte aluminum finish |
| Stem | Length: 4" (101.6 mm) Diameter: ¼" (6.35 mm) |
