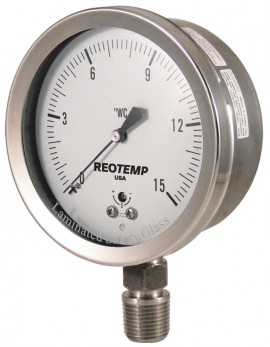

Provides accurate and reliable measurements of gaseous media, this pressure gauge has stainless steel internals, withstands corrosive media, and ensures a long-lasting instrument. In addition, this gauge features a sensitive diaphragm/capsule mechanism and a compound pressure range of -5/0/5 psi.
Provides accurate and reliable measurements of gaseous media, this pressure gauge has stainless steel internals, withstands corrosive media, and ensures a long-lasting instrument. In addition, this gauge features a sensitive diaphragm/capsule mechanism and a compound pressure range of -5/0/5 psi.
Features
Applications
| Compound Pressure Range | -5/0/5 psi |
| Accuracy | 2-1.6-2% |
| Maximum Working Pressure | Stable = 100% Momentary = 130% of scale |
| Ambient and Process Limits | Ambient: -40/150°F Process: -40/200°F Process limits with diaphragm seal: -60/350°F (direct mount), -110/750°F (remote mount or cooling tower)* *Exact limits depend on diaphragm seal and fill fluids |
| Wetted Materials | Capsule and socket: 316LSS |
| Other Materials | Case: 304SS Ring: 304SS, bayonet twist-off Dial: White aluminum, black letters Case-to-socket: Screw connection, vented case |
| Case Fill | Dry |
| Lens | Tempered safety glass |
| Mount Type | Bottom |
| Connection | ½" NPT |
| Restrictor Screw | Yes |
| Dial Size | 4" (101.6 mm) |
| Dimensions | 5.75 x 1.92 x Ø4.3" (146.1 x 48.8 x Ø109.2 mm) |
| Weight | 1.1 lbs (0.5 kg) |
| Compound Pressure Range | -5/0/5 psi |
| Accuracy | 2-1.6-2% |
| Maximum Working Pressure | Stable = 100% Momentary = 130% of scale |
| Ambient and Process Limits | Ambient: -40/150°F Process: -40/200°F Process limits with diaphragm seal: -60/350°F (direct mount), -110/750°F (remote mount or cooling tower)* *Exact limits depend on diaphragm seal and fill fluids |
| Wetted Materials | Capsule and socket: 316LSS |
| Other Materials | Case: 304SS Ring: 304SS, bayonet twist-off Dial: White aluminum, black letters Case-to-socket: Screw connection, vented case |
| Case Fill | Dry |
| Lens | Tempered safety glass |
| Mount Type | Bottom |
| Connection | ½" NPT |
| Restrictor Screw | Yes |
| Dial Size | 4" (101.6 mm) |
| Dimensions | 5.75 x 1.92 x Ø4.3" (146.1 x 48.8 x Ø109.2 mm) |
| Weight | 1.1 lbs (0.5 kg) |
