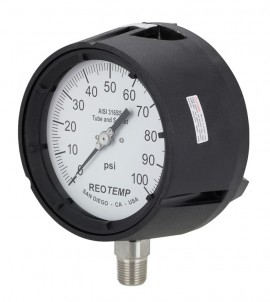

Image is for reference only, refer to product info for complete details.
Offers a very rugged solid front and blowout back, this process gauge provides a high degree of user safety that withstand corrosive conditions, pulsation, and vibration, meeting the demands of the process industries. In addition, it includes a paper tag, features tempered safety glass, and a pressure range of 0 to 100 psi.
Offers a very rugged solid front and blowout back, this process gauge provides a high degree of user safety that withstand corrosive conditions, pulsation, and vibration, meeting the demands of the process industries. In addition, it includes a paper tag, features tempered safety glass, and a pressure range of 0 to 100 psi.
Features
Applications
| Pressure Range | 0 to 100 psi |
| Accuracy | ±0.5%, grade 2A (10 to 20k psi = 1% upscale, 2% downscale) |
| Ambient Limits | -40/150°F (-40/65.56°C) |
| Process Limits | -40/250°F (-40/121.11°C) |
| Maximum Working Pressure | Stable = 100% Momentary = 130% of scale |
| Case Type | Fiberglass reinforced thermoplastic |
| Tube and Socket | 316SS |
| Mount Type | Bottom |
| Connection | ¼" NPT |
| Case Fill | Glycerin |
| Lens | Tempered safety glass (standard) |
| Tag | Paper tag |
| Dial Size | 4.5" (114.3 mm) |
| Dimension | 7 x 3.39 x Ø5.83" (177.8 x 86.11 x Ø148.08 mm) |
| Weight | 3.5 lbs (1587.57 g) |
| Pressure Range | 0 to 100 psi |
| Accuracy | ±0.5%, grade 2A (10 to 20k psi = 1% upscale, 2% downscale) |
| Ambient Limits | -40/150°F (-40/65.56°C) |
| Process Limits | -40/250°F (-40/121.11°C) |
| Maximum Working Pressure | Stable = 100% Momentary = 130% of scale |
| Case Type | Fiberglass reinforced thermoplastic |
| Tube and Socket | 316SS |
| Mount Type | Bottom |
| Connection | ¼" NPT |
| Case Fill | Glycerin |
| Lens | Tempered safety glass (standard) |
| Tag | Paper tag |
| Dial Size | 4.5" (114.3 mm) |
| Dimension | 7 x 3.39 x Ø5.83" (177.8 x 86.11 x Ø148.08 mm) |
| Weight | 3.5 lbs (1587.57 g) |
