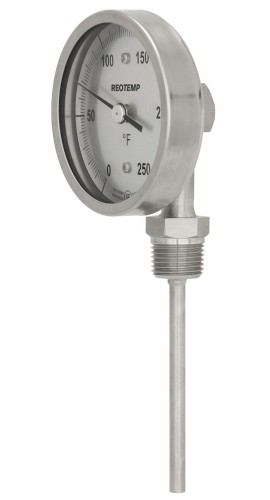

Image is for reference only, refer to product info for complete details.
Reliable and accurate, this bimetal thermometer requires no electricity or wiring and features a temperature range of 0 to 250°F, a 3" (76.2 mm) dial, and a 6" (152.4 mm) stem length. In addition, it is ideal for side and elevated installations on tops or sides of tanks or pipes and local indication.
Reliable and accurate, this bimetal thermometer requires no electricity or wiring and features a temperature range of 0 to 250°F, a 3" (76.2 mm) dial, and a 6" (152.4 mm) stem length. In addition, it is ideal for side and elevated installations on tops or sides of tanks or pipes and local indication.
Features
Applications
| Temperature Range | 0 to 250°F |
| Accuracy | ±1% full scale (ASME B40.3) |
| Dial | Size: 3" (76.2 mm) Material: Black marks on satin matte aluminum finish |
| Stem | Length: 6" (152.4 mm) Diameter: ¼" (6.35 mm) Material: 300 series SS |
| Head, Bezel, Mounting Bushing | 300 series SS |
| Mounting Connection | ½" NPT |
| Operating Conditions | Head temperature should not exceed 200°F Stem should not be exposed to continuous temperatures exceeding 50% overrange or 800°F |
| Immersion | Minimum 2" (50.8 mm) in liquid, and 4" (101.6 mm) in gas |
| Temperature Sensing Area | Last 2 to 4" (50.8 to 101.6 mm) of the stem |
| Lens | Glass |
| Environmental Protection | IP67, NEMA 6 rated (hermetically sealed per ASME B40.3) |
| Temperature Range | 0 to 250°F |
| Accuracy | ±1% full scale (ASME B40.3) |
| Dial | Size: 3" (76.2 mm) Material: Black marks on satin matte aluminum finish |
| Stem | Length: 6" (152.4 mm) Diameter: ¼" (6.35 mm) Material: 300 series SS |
| Head, Bezel, Mounting Bushing | 300 series SS |
| Mounting Connection | ½" NPT |
| Operating Conditions | Head temperature should not exceed 200°F Stem should not be exposed to continuous temperatures exceeding 50% overrange or 800°F |
| Immersion | Minimum 2" (50.8 mm) in liquid, and 4" (101.6 mm) in gas |
| Temperature Sensing Area | Last 2 to 4" (50.8 to 101.6 mm) of the stem |
| Lens | Glass |
| Environmental Protection | IP67, NEMA 6 rated (hermetically sealed per ASME B40.3) |
