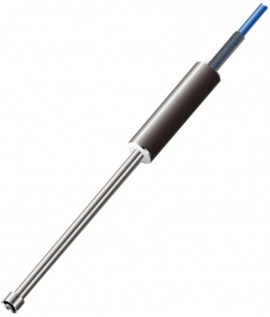

Ideal for measuring middle/high temperatures, this sensor can measure up to 600°C on stationary surfaces using a durable stainless head. In addition, it features an L-shaped sensor head design compatible with the DP-700 thermometer and connects through a 39" (1 m) standard silicon rubber coated cable.
Ideal for measuring middle/high temperatures, this sensor can measure up to 600°C on stationary surfaces using a durable stainless head. In addition, it features an L-shaped sensor head design compatible with the DP-700 thermometer and connects through a 39" (1 m) standard silicon rubber coated cable.
Ideal for measuring middle/high temperatures of stationary surfaces, this sensor has a stainless steel head for measuring high temperatures.
Features
Applications
| Type | L-shaped type |
| Operating Temperature | 1112°F (600°C) maximum |
| Metal Surface | Response time: 0.7 seconds (95% indication) Time constant: 0.2 seconds (63% indication) |
| Thermocouple | Type-K |
| Resistance of Sensor with a Leadwire 3.28' (1 m) | 7.5 Ω |
| Accuracy | ±0.5% ±1°C |
| Cable | End: 6C connector Type: Silicon rubber coated (blue) standard type |
| Dimensions | Cable: 3.28' (1 m) Sensor: 9.37 x 0.9" (238 x 23 mm) |
| Type | L-shaped type |
| Operating Temperature | 1112°F (600°C) maximum |
| Metal Surface | Response time: 0.7 seconds (95% indication) Time constant: 0.2 seconds (63% indication) |
| Thermocouple | Type-K |
| Resistance of Sensor with a Leadwire 3.28' (1 m) | 7.5 Ω |
| Accuracy | ±0.5% ±1°C |
| Cable | End: 6C connector Type: Silicon rubber coated (blue) standard type |
| Dimensions | Cable: 3.28' (1 m) Sensor: 9.37 x 0.9" (238 x 23 mm) |
