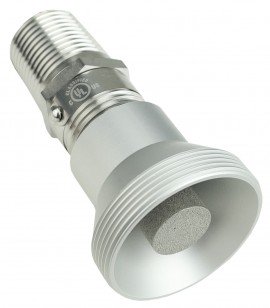

Compatible with fixed systems, this combustible catalytic type sensor produces an electrical output corresponding to the detection range. In addition, this sensor features a direct connection, a measurement range of 0 to 100% LEL, and is UL certified.
Compatible with fixed systems, this combustible catalytic type sensor produces an electrical output corresponding to the detection range. In addition, this sensor features a direct connection, a measurement range of 0 to 100% LEL, and is UL certified.
Features
Applications
| Measuring Principle | Catalytic oxidation |
| Range of Measurement | 0 to 100% LEL |
| Resolution | 1% of full scale |
| Accuracy | ±5% of reading or ±2% LEL (whichever is greater) |
| Repeatability | ±2% of reading |
| T90 Response Time (68°F [20°C], 2 minute exposure) |
<30 seconds |
| Operating Conditions | Temperature range: -40 to 140°F (-40 to 60°C) Humidity range: 0 to 100% RH, non-condensing |
| Life Expectancy | Two to five years |
| Measuring Principle | Catalytic oxidation |
| Range of Measurement | 0 to 100% LEL |
| Resolution | 1% of full scale |
| Accuracy | ±5% of reading or ±2% LEL (whichever is greater) |
| Repeatability | ±2% of reading |
| T90 Response Time (68°F [20°C], 2 minute exposure) |
<30 seconds |
| Operating Conditions | Temperature range: -40 to 140°F (-40 to 60°C) Humidity range: 0 to 100% RH, non-condensing |
| Life Expectancy | Two to five years |
