The sensor is used for reliable, accurate gas detection. It offers versatile mounting options.
The sensor is used for reliable, accurate gas detection. It offers versatile mounting options.

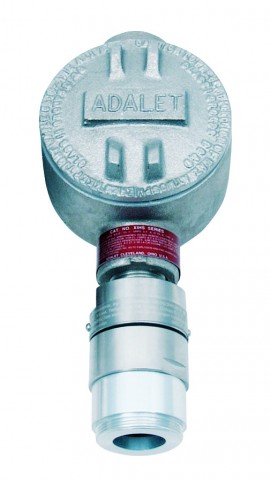

The RKI 65-2331RK S2 Series Hydrogen Sulfide Sensor/Transmitter with explosion proof J-box is highly reliable and very cost effective for the detection of common gas hazards. The transmitter is explosion-proof with flame arrestors, and is approved for use in hazardous areas (Class l, Groups B, C, D). S2 transmitters can be used either indoors or outdoors. The flame arrestors for the explosion-proof versions utilize a patented coating which make them water repellent. Splash guards are also available for use in very wet environments. An optional stainless-steel junction box is available for corrosive environments. All of the S2 transmitters are designed to interface with RKI controllers, or with PLC/DCS systems.
Features
| Sensor | Electrochemical |
| Measuring Range | 0 to 100 ppm |
| Lower Detectable Limit (LDL) | 2% of full scale |
| Response Time (T-90) | 45 seconds |
| Life Expectancy | 2-3 years with normal service |
| Approvals | CSA |
| Sensor | Electrochemical |
| Measuring Range | 0 to 100 ppm |
| Lower Detectable Limit (LDL) | 2% of full scale |
| Response Time (T-90) | 45 seconds |
| Life Expectancy | 2-3 years with normal service |
| Approvals | CSA |
