The sensor is used for reliable, accurate gas detection. It offers versatile mounting options.
The sensor is used for reliable, accurate gas detection. It offers versatile mounting options.

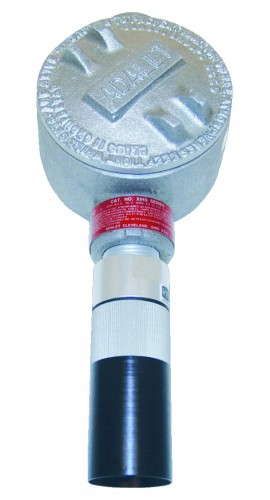

The RKI 65-2340RK-SO2 S2 Series Sulfur Dioxide Sensor/Transmitter with non explosion proof J-box is highly reliable and very cost effective for the detection of common gas hazards. This is the optional non-explosion proof version for use in non-hazardous atmospheres. The toxic sensor is an electrochemical type plug-in sensor, which provides high specificity, fast response and long life. The plug-in design allows quick replacement in the field with no tools required. Toxic sensors are designed for use in Class I, Div. 2 hazardous locations. S2 transmitters can be used either indoors or outdoors. An optional stainless-steel junction box is available for corrosive environments. All of the S2 transmitters are designed to interface with RKI controllers, or with PLC/DCS systems.
Features
| Sensor | Electrochemical |
| Measuring Range | 0 to 6 ppm |
| Lower Detectable Limit (LDL) | 2% of full scale |
| Response Time (T-90) | 60 seconds |
| Life Expectancy | 2 to 3 years with normal service |
| Gas | Sulfur dioxide |
| Sensor | Electrochemical |
| Measuring Range | 0 to 6 ppm |
| Lower Detectable Limit (LDL) | 2% of full scale |
| Response Time (T-90) | 60 seconds |
| Life Expectancy | 2 to 3 years with normal service |
| Gas | Sulfur dioxide |
