The sensor is used for reliable, accurate gas detection. It offers versatile mounting options.
The sensor is used for reliable, accurate gas detection. It offers versatile mounting options.

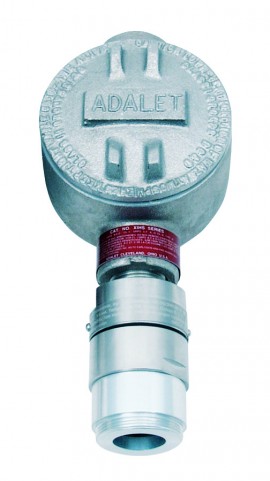

The RKI 65-2394RK-HC S2 Series IR Hydrocarbon Sensor/Transmitter with explosion proof J-box is highly reliable and very cost effective for the detection of common gas hazards. The transmitter is explosion-proof with flame arrestors and is approved for use in hazardous areas (Class l, Groups B, C, D). The toxic sensor is an electrochemical type plug-in sensor, which provides high specificity, fast response and long life. The plug-in design allows quick replacement in the field with no tools required. Toxic sensors are designed for use in Class I, Div. 2 hazardous locations. S2 transmitters can be used either indoors or outdoors. The flame arrestors for the explosion-proof versions utilize a patented coating which make them water repellent. Splash guards are also available for use in very wet environments. An optional stainless-steel junction box is available for corrosive environments. All of the S2 transmitters are designed to interface with RKI controllers, or with PLC/DCS systems.
Features
| Sensor | Infrared |
| Measuring Range | 0 to 100% LEL |
| Lower Detectable Limit (LDL) | 2% of full scale |
| Response Time (T-90) | 45 seconds |
| Life Expectancy | 5 years plus with normal service |
| Sensor | Infrared |
| Measuring Range | 0 to 100% LEL |
| Lower Detectable Limit (LDL) | 2% of full scale |
| Response Time (T-90) | 45 seconds |
| Life Expectancy | 5 years plus with normal service |
