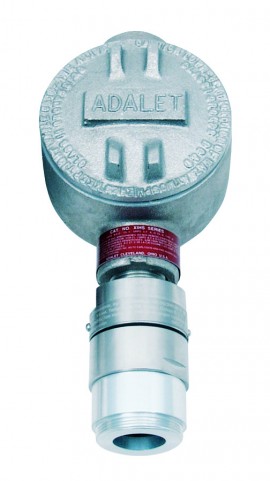

RKI 65-2451RK S2 Series Hydrogen Specific Sensor/Transmitter with explosion proof J-box, 0 to 100% LEL, UL version

Model: 65-2451RK

RKI 65-2451RK S2 Series Hydrogen Specific Sensor/Transmitter with explosion proof J-box, 0 to 100% LEL, UL version

Model: 65-2451RK

The sensor is designed for detecting common gas hazards. It features explosion-proof construction and flame arrestors for durability.

The sensor is designed for detecting common gas hazards. It features explosion-proof construction and flame arrestors for durability.

Your Price $830.00 USD
Availability 7 to 8 Weeks
Quantity

RKI 65-2451RK Offers



The RKI 65-2451RK S2 Series Hydrogen Specific Sensor/Transmitter with explosion proof J-box is highly reliable for the detection of common gas hazards. The sensor is explosion-proof with flame arrestors and is approved for use in hazardous areas (Class 1, Div. 1 Groups B, C and D). It can be mounted directly to the controllers as a complete stand alone system, or it can be mounted to explosion proof junction boxes for remote detection. The toxic sensors are electrochemical type plug-in sensors, which provide high specificity, fast response and long life, while the plug-in design allows quick replacement in the field with no tools required. The sensor can be used either indoors or outdoors.

Features

  • For accurate hydrogen (H2) specific detection
  • Patented water repellent sensor coating
  • Transmitter offers convenient 4 to 20 mA output
  • Explosion proof construction with flame arrestors makes it approved for hazardous areas
  • Optional stainless-steel junction box provides corrosion protection
  • Mounts directly to the controller or to the explosion proof junction box

RKI 65-2451RK Specifications


SensorCatalytic
Measuring Range0 to 100% LEL (H2 specific)
Lower Detectable Limit (LDL)2% of full scale
Response Time (T-90)20 seconds
Life Expectancy3 to 5 years with normal service
Click here for complete specifications on the RKI 65-2451RK

What's included with the RKI 65-2451RK


  • Hydrogen Sensor
  • J-Box
  • 1-Year Warranty
