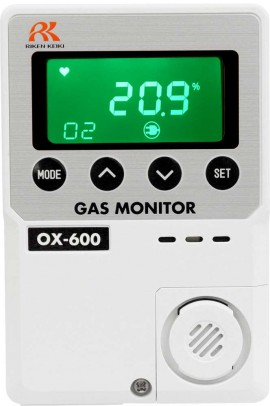

Quickly detect oxygen (O2) with a range of 0 to 25% volume with 0.1% increments with this indoor, stand-alone gas monitor for up to one year with included alkaline batteries. In addition, this monitor's sleek, low-profile design features a unique tri-color display, which changes color as oxygen levels reach each alarm level.
Quickly detect oxygen (O2) with a range of 0 to 25% volume with 0.1% increments with this indoor, stand-alone gas monitor for up to one year with included alkaline batteries. In addition, this monitor's sleek, low-profile design features a unique tri-color display, which changes color as oxygen levels reach each alarm level.
Ideal for indoor oxygen detection, this oxygen monitor has a compact wall mount design.
Features
Applications
| Detection | Principle: Galvanic cell Gas: Oxygen (O2) Range: 0 to 25% volume |
| Display Resolution | 0.1% volume |
| Sampling Method | Diffusion or remote sampling method |
| Indication Accuracy | Within ±0.7% volume |
| Response Time | 90% response within 30 seconds (T90) |
| Alarm Levels | Two preset alarms (L-LL), alarm 1 = 19.5% volume, alarm 2 = 18.0% volume (other settings available) |
| Display of Alarm | 1st gas alarm: gas concentration reading blinks, flashing AL 1 icon, orange back light, buzzer 2nd gas alarm: gas concentration reading blinks, flashing AL 2 icon, red back light, buzzer |
| Alarm Logic | Latching or non-latching (including trouble alarm) |
| Alarm Contact | Dry contact, normally open or normally closed (default setting is normally open) |
| Display | Digital LCD (3 digits, 7 segments / Green, Orange, Red) (For Alkaline battery version, the back light will be OFF during normal operation) |
| Trouble Alarm / Self-Diagnosis | System trouble / sensor connection trouble |
| Display of Trouble Alarm | Buzzer / flashing of red error message |
| Relay Contact Rating | 125 V AC, 1 A or 30 V DC, 1 A (resistive load) |
| Output Signal | 4 to 20 mA (non-isolated, resistive load under 300Ω) or 0 to 1 V DC (non-isolated) (Only for 0 to 1 V DC Alkaline battery specification) |
| Power Sources | 120 V AC ±10% (50/60 Hz) or 24 V DC ±10% or 2 x AA alkaline batteries |
| Power Consumption | AC specification: Maximum 3.5 V A DC specification: Maximum 2 W |
| Battery Life | 1 year (no alarm) (Alkaline battery version) |
| Approvals | CE marking standard |
| Operating Conditions | Temperature: 0 to 104°F (-17 to 40°C) Humidity: 0 to 90% RH (non-condensing) |
| Response Time | Within 30 seconds (T90) |
| Mounting Equipment | Wall mounting type (by using accessory mounting plate or mount at one switch box) Cable inlet: Up, down and left/right, or rear side |
| Dimensions | Body: approximately 3.15 x 4.72 x 1.2" (80 x 120 x 35.5 mm) |
| Weight | AC specification: approximately 7.05 oz (approximately 0.2 kg) DC specification: approximately 6.34 oz (approximately 0.18 kg) Alkaline battery specification: approximately 8.11 oz (approximately 0.23 kg) |
| Detection | Principle: Galvanic cell Gas: Oxygen (O2) Range: 0 to 25% volume |
| Display Resolution | 0.1% volume |
| Sampling Method | Diffusion or remote sampling method |
| Indication Accuracy | Within ±0.7% volume |
| Response Time | 90% response within 30 seconds (T90) |
| Alarm Levels | Two preset alarms (L-LL), alarm 1 = 19.5% volume, alarm 2 = 18.0% volume (other settings available) |
| Display of Alarm | 1st gas alarm: gas concentration reading blinks, flashing AL 1 icon, orange back light, buzzer 2nd gas alarm: gas concentration reading blinks, flashing AL 2 icon, red back light, buzzer |
| Alarm Logic | Latching or non-latching (including trouble alarm) |
| Alarm Contact | Dry contact, normally open or normally closed (default setting is normally open) |
| Display | Digital LCD (3 digits, 7 segments / Green, Orange, Red) (For Alkaline battery version, the back light will be OFF during normal operation) |
| Trouble Alarm / Self-Diagnosis | System trouble / sensor connection trouble |
| Display of Trouble Alarm | Buzzer / flashing of red error message |
| Relay Contact Rating | 125 V AC, 1 A or 30 V DC, 1 A (resistive load) |
| Output Signal | 4 to 20 mA (non-isolated, resistive load under 300Ω) or 0 to 1 V DC (non-isolated) (Only for 0 to 1 V DC Alkaline battery specification) |
| Power Sources | 120 V AC ±10% (50/60 Hz) or 24 V DC ±10% or 2 x AA alkaline batteries |
| Power Consumption | AC specification: Maximum 3.5 V A DC specification: Maximum 2 W |
| Battery Life | 1 year (no alarm) (Alkaline battery version) |
| Approvals | CE marking standard |
| Operating Conditions | Temperature: 0 to 104°F (-17 to 40°C) Humidity: 0 to 90% RH (non-condensing) |
| Response Time | Within 30 seconds (T90) |
| Mounting Equipment | Wall mounting type (by using accessory mounting plate or mount at one switch box) Cable inlet: Up, down and left/right, or rear side |
| Dimensions | Body: approximately 3.15 x 4.72 x 1.2" (80 x 120 x 35.5 mm) |
| Weight | AC specification: approximately 7.05 oz (approximately 0.2 kg) DC specification: approximately 6.34 oz (approximately 0.18 kg) Alkaline battery specification: approximately 8.11 oz (approximately 0.23 kg) |
