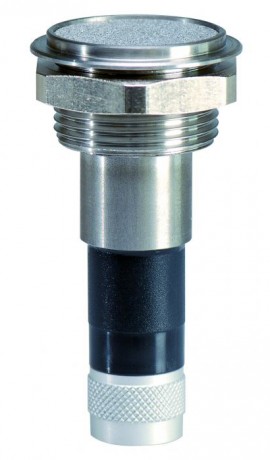

Rotronic 0210.HC2-IS25 Button Probe

Model: 0210.HC2-IS25 | Order No: HC2-IS25

Rotronic 0210.HC2-IS25 Button Probe-

Downloads:

More Rotronic Products

Ask an Expert

Rotronic 0210.HC2-IS25 Button Probe

Model: 0210.HC2-IS25 | Order No: HC2-IS25

Your Price $764.00 USD
Availability 2 to 3 Weeks
Quantity

Rotronic 0210.HC2-IS25 Offers

Features

  • Range of application: -40…85 °C / 0…99 %RH
  • Digital interface (UART) and scalable analog outputs, 0…1 V
  • Standard output scaling: 0…1V = -40…60 °C / 0…100 %RH
  • Adjusted at 23°C and 10, 35, 80 %RH

Applications

  • Medical industry
  • Clean rooms
  • Museums
  • Hotels
  • Ships
  • HVAC
  • Exhibition rooms

Rotronic 0210.HC2-IS25 Specifications

Accuracy at 23 ±5°C ±1.5% rh / ±0.2 K
Probe Type: Wall flush mount probe
Material: Polycarbonate, stainless steel DIN 1.4301
Power Consumption 3.2…5 VDC, calibrated at 3.3 VDC, current: 4.5 mA
Sensor Humidity: Rotronic Hygrometer WA-1
Temperature: Pt100 Class A
Filter Cartridge Sintered Steel
Response time T63 <20 seconds
Weight 1.76 oz (50 g)
Click here for complete specifications on the Rotronic 0210.HC2-IS25

What's included with the Rotronic 0210.HC2-IS25

  • Rotronic 0210.HC2-IS25 Button Probe

Ask a question about Rotronic 0210.HC2-IS25 Button Probe

Customer Reviews for the Rotronic 0210.HC2-IS25

Rotronic 0210.HC2-IS25 Offers

Features

  • Range of application: -40…85 °C / 0…99 %RH
  • Digital interface (UART) and scalable analog outputs, 0…1 V
  • Standard output scaling: 0…1V = -40…60 °C / 0…100 %RH
  • Adjusted at 23°C and 10, 35, 80 %RH

Applications

  • Medical industry
  • Clean rooms
  • Museums
  • Hotels
  • Ships
  • HVAC
  • Exhibition rooms
Show More...

Rotronic 0210.HC2-IS25 Specifications

Accuracy at 23 ±5°C ±1.5% rh / ±0.2 K
Probe Type: Wall flush mount probe
Material: Polycarbonate, stainless steel DIN 1.4301
Power Consumption 3.2…5 VDC, calibrated at 3.3 VDC, current: 4.5 mA
Sensor Humidity: Rotronic Hygrometer WA-1
Temperature: Pt100 Class A
Filter Cartridge Sintered Steel
Response time T63 <20 seconds
Weight 1.76 oz (50 g)
Click here for complete specifications on the Rotronic 0210.HC2-IS25

What's included with the Rotronic 0210.HC2-IS25

  • Rotronic 0210.HC2-IS25 Button Probe

Ask a question about Rotronic 0210.HC2-IS25 Button Probe

Customer Reviews for the Rotronic 0210.HC2-IS25
