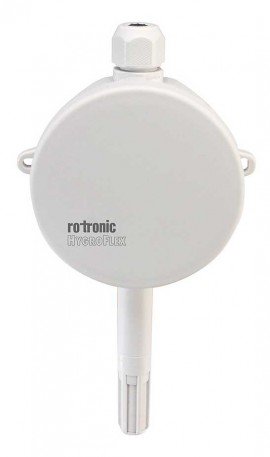

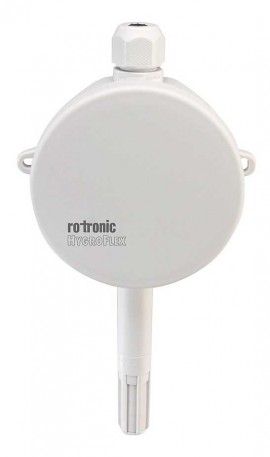

This 2-wire transmitter with wall mounting offers outsanding accuracy and repeatability in RH and temperature measurements and dew point calculation. Ideal for applications where precision is highly important.
This 2-wire transmitter with wall mounting offers outsanding accuracy and repeatability in RH and temperature measurements and dew point calculation. Ideal for applications where precision is highly important.
The HygroFlex3-series is the latest development in HVAC/R transmitters for relative humidity, temperature and dew point. Based on AirChip3000 technology, the instruments achieve a degree of accuracy not seen before.
In combination with advances in sensor technology and integration, the HygroFlex3-series provides superb precision and state-of-the-art functionality, taking humidity, temperature and dew point measurement to a whole new level of performance and reliability (< 2 %rh / 0.3 K).
Features
Applications
| Accuracy @ 23 ±5°C | ±2.0 %rh, ±0.3 K |
| Probe Type | Integrated |
| Operating Range | 0 to 100°F / 0 to 100 %rh, non-condensing |
| Measuring Range With Integrated Probe | 0 to 100°F / 0 to 100 %rh |
| Power Consumption | 15 to 40 VDC or 12 to 28 VAC/ <100 mA |
| Alarm Indicators | Yes |
| Exploitation Software | ROTRONIC HW4 |
| Probe Protection | Polycarbonate plastic cage, white |
| Filter Cartridge | Polyethylene dust filter, gray, 20 um |
| Circuit Type | 2-wire |
| Weight | 120 g |
| Accuracy @ 23 ±5°C | ±2.0 %rh, ±0.3 K |
| Probe Type | Integrated |
| Operating Range | 0 to 100°F / 0 to 100 %rh, non-condensing |
| Measuring Range With Integrated Probe | 0 to 100°F / 0 to 100 %rh |
| Power Consumption | 15 to 40 VDC or 12 to 28 VAC/ <100 mA |
| Alarm Indicators | Yes |
| Exploitation Software | ROTRONIC HW4 |
| Probe Protection | Polycarbonate plastic cage, white |
| Filter Cartridge | Polyethylene dust filter, gray, 20 um |
| Circuit Type | 2-wire |
| Weight | 120 g |
