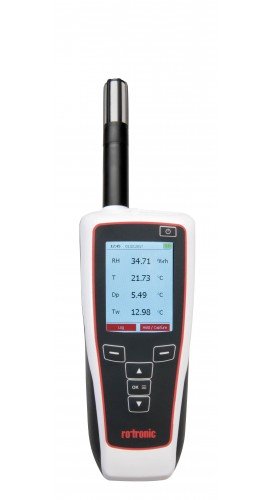

Rotronic HP31 Digital Psychrometer, 0 to 100% RH, -10 to 60°C

Model: HP31

Rotronic HP31 Digital Psychrometer, 0 to 100% RH, -10 to 60°C-

Downloads:

More Rotronic Products

Ask an Expert

Rotronic HP31 Digital Psychrometer, 0 to 100% RH, -10 to 60°C

Model: HP31

Fixed probe. Measures humidity, temperature and calculates dew/frost point.

Fixed probe. Measures humidity, temperature and calculates dew/frost point.

Your Price $532.00 USD
Availability 4 to 5 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 0105.HP21

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 0105.HP21

Recommended Accessories

Rotronic AC3006 USB Connection Cable for Unit to HC2-

Rotronic AC3006 USB Connection Cable for Unit to HC2

5220.AC3006

Rotronic HP31 Offers

Features

  • Measures relative humidity and temperature and perform psychrometric calculations
  • Graphical display for graphs and up to 4 values
  • Freely settable visual and audible alarms on every value
  • 64000 data points memory for time programmable interval logging
  • Long-life rechargeable battery (up to 48 hours at a logging interval of 30 seconds)

Applications

  • Mobile inspection
  • HVAC/R
  • Pharmaceutical industry
  • Building management systems

Rotronic HP31 Specifications

Parameters Relative humidity and temperature
Probes Fixed probe
Probe Application Note 14°F (-10°C)
0 to 100% RH
Device Type Handheld device (% RH/°C)
Functions Spot measurements time programmable interval logging MIN/MAX/AVG
Range of Application 14 to 140°F (-10 to 60°C)/0 to 100% RH (non-condensing)
Psychrometric Calculations Dew/Frost point (Dp/Fp)
Wet bulb temperature (Tw)
Enthalpy (H)
Vapor concentration (Dv)
Specific humidity (Q)
Mixing ratio by weight (R)
Vapor pressure (E)
Saturation vapor pressure (Ew)
Saturation vapor density (SVD)
Calculation Method WMO standard
Display Refresh Rate 1 s (typical)
Logging Interval 1 s to 24 hrs
Storage Capacity 8 x 8000 data points
Communication Interfaces Micro-USB port, HW4 compatible >V3.9
Housing ABS, TPR
IP Protection Rating IP65
Battery Lithium Polymer, 3.7 V, 1000 mAh (integrated)
48 hours - Logging every 30 s, screen off
10 hours - Screen always on
Storage and Transport Conditions 14 to 113°F (-10 to 45°C)/10 to 90% RH
Dimensions 6.2 x 2.4 x 1.1" (160 x 63 x 30 mm)
Weight 0.4 lbs (185 g)
Click here for complete specifications on the Rotronic HP31

What's included with the Rotronic HP31

  • Psychrometer
  • Micro-USB Cable
  • Soft Carrying Case
  • Software License

Click on a category to view a selection of compatible accessories with the Rotronic HP31 Digital Psychrometer, 0 to 100% RH, -10 to 60°C.

Rotronic AC3006 USB Connection Cable for Unit to HC2 5220.AC3006
For programming and connecting ROTRONIC instruments via their service interface (UART) to a USB interface. Requires HW4 software for use. Does not supply the instrument with power.



Rotronic AC3009 Active Converter Cable POE 5220.AC3009
For programming and connecting ROTRONIC instruments via their service interface (UART) to a USB interface. Requires HW4 software for use. Supplies the instrument with power.
