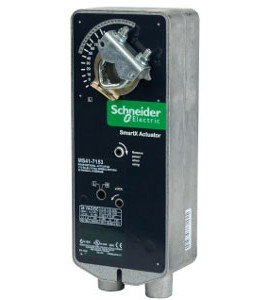

A SmartX direct-coupled damper actuator delivering 133 lb-in (15 N-m) of torque at 120 VAC and 10 VA at 60 Hz. It’s designed for controlling air dampers in building systems supporting two-position control.
A SmartX direct-coupled damper actuator delivering 133 lb-in (15 N-m) of torque at 120 VAC and 10 VA at 60 Hz. It’s designed for controlling air dampers in building systems supporting two-position control.
Features
| Control signal | On-off, SPST control contacts or Triacs (500 mA rated) Floating point control, 24 VAC 10 VDC or 4 to 20 mADC with a 500 Ω resistor. |
| Power inputs | Control: Two-position Voltage: 120 VAC VA at 60 Hz: 10 |
| Connections | 3' (91.44 cm) appliance cables, 1/2" (1.27 cm) conduit connector |
| Electrical outputs | Position feedback voltage “AO” 2 to 10 Vdc (maximum 0.5 mA) output signal for position feedback or operation of up to four slave actuators |
| Mechanical outputs | Travel rotation is limited to 95° ± 5 maximum, adjustable from 30 to 95° with a mechanical stop Position indicator: pointer and scale are provided Manual override: manual adjustable rotation 5 to 85°. |
| Ambient temperature limits | Shipping and storage: -40 to 160°F (-40 to 71°C) Operating: -22 to 140°F (-30 to 60°C) Humidity: 5 to 95% RH, non-condensing |
| Location | NEMA 1, NEMA 2 (IEC IP54) with conduit connector in down position. |
| Agency listings | UL 873: Underwriters Laboratories (File #E9429 Category Temperature-indicating and Regulating Equipment) Cul: UL LISTED for use in Canada by Underwriters Laboratories. Canadian standards C22.2 No. 24 |
