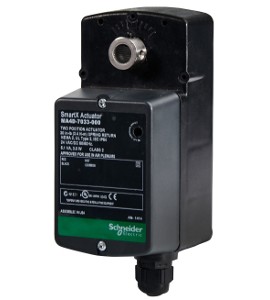

Built for reliable damper and valve control, this SmartX spring return actuator delivers 30 lb-in (3.4 Nm) of torque and accepts a 0 to 10 V DC control signal. Designed for 24 V AC/V DC operation, it features a clockwise (CW) fail-safe return and supports overshaft installations up to 1/2" (13 mm). Ideal for building systems requiring proportional control and secure shutdown during power loss.
Built for reliable damper and valve control, this SmartX spring return actuator delivers 30 lb-in (3.4 Nm) of torque and accepts a 0 to 10 V DC control signal. Designed for 24 V AC/V DC operation, it features a clockwise (CW) fail-safe return and supports overshaft installations up to 1/2" (13 mm). Ideal for building systems requiring proportional control and secure shutdown during power loss.
Features
| Tightening Torque | 30 lb.in 3.4 N.m |
| [Us] Rated Supply Voltage | 20 to 30 V DC 24 V AC/DC |
| Actuator Type | Electric |
| Analogue Input Range | 0 to 10 V DC |
| Auxiliary Switch | No |
| Conduit Connection | 1/2" (13 mm) |
| Control Signal | Proportional/modulating |
| Current Consumption | 120 mA |
| Feedback Signal | 0 to 10 V DC |
| Hold-In Power Consumption | 1.4 W |
| Humidity | 15 to 95%, non-condensing |
| Insulation Class | Class II |
| IP Protection Rating | IP11 |
| Lead Length | 3' (0.9 m) |
| Leads and Connections | Plenum |
| Loss of Power Type | Spring return |
| Material | Polymer: housing |
| Mechanical Movement | Rotary |
| Motor Type | Brush DC motor |
| Override | Automatic reset |
| Position Indicator | Housing scale |
| Power Consumption Running | 6.1 VA AC 3.4 W |
| Rotation | 93° |
| Temperature | Operating range: -22 to 140°F (-30 to 60°C) Storage: -40 to 160°F (-40 to 71°C) |
