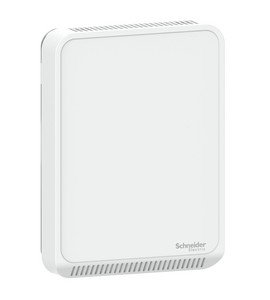

Part of the SLA Series, this SpaceLogic humidity sensor features analog outputs (4 to 20 mA, 0 to 5 V DC, or 0 to 10 V DC) and includes integrated temperature sensing. Designed for BAS controller integration, it comes in a matte white medium housing with no user interface.
Part of the SLA Series, this SpaceLogic humidity sensor features analog outputs (4 to 20 mA, 0 to 5 V DC, or 0 to 10 V DC) and includes integrated temperature sensing. Designed for BAS controller integration, it comes in a matte white medium housing with no user interface.
Features
Applications
| Type of Measurement | Humidity Temperature |
| Temperature | Setting range: 32 to 122°F (0 to 50°C) 50 to 95°F (10 to 35°C) Operating range: 32 to 122°F (0 to 50°C) |
| [Us] Rated Supply Voltage | 20 to 30 V DC 24 V AC |
| Color | White |
| Communication Network Type | Wired |
| Connections - Terminals | Screw terminal - 2 AWG (24 to 18 AWG) |
| Depth | 0.9" (24 mm) |
| Display Type | Without display |
| Final Result for Connectable | Connectable ready |
| Final Result for Flywheel Performance Tracking | Connectable products |
| Function Available | With humidity sensor With temperature sensor |
| Height | 3.3" (85 mm) |
| Humidity Setting Range | 0 to 100% |
| Hysteresis | 0.015 |
| Location | Living space |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Mounting Support | Wall mount |
| Network Frequency | 50 Hz 60 Hz |
| Number Of Outputs | 1 configurable 1 fan |
| Output Type | Analog |
| Output Voltage | 0 to 10 V: Configurable analog output 0 to 10 V: Fan speed 0 to 5 V: Configurable analog output |
| Product Certifications | CE conforming to EN 61000-6-2 CE conforming to EN 61000-6-3 CE conforming to EN 61326-1 CULus EAC ICES-003 RCM |
| Product or Component Type | Sensor |
| Product Specific Application | Humidity control |
| Range | SpaceLogic |
| Range Compatibility | EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers |
| Selection Tools | HVAC sensors |
| Sensor Type | Thin-film capacitive Transmitter |
| Standards | FCC part 15 class B UL 916 |
| Surface Finish | Matte |
