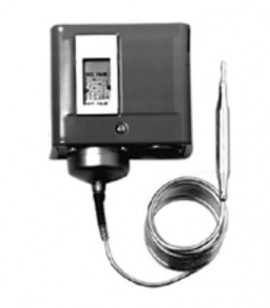

Schneider Electric TC-5241 TC Series Low Temperature Thermostat with manual reset, SPDT switch, 35 to 60°F

Model: TC-5241

Built for dependable cold zone monitoring, this SPDT thermostat offers manual reset and a temperature range of 35 to 60°F (2 to 16°C). In addition, it includes a 20' (6.1 m) sensing element designed to measure the coldest 1-foot segment for accurate response.

Built for dependable cold zone monitoring, this SPDT thermostat offers manual reset and a temperature range of 35 to 60°F (2 to 16°C). In addition, it includes a 20' (6.1 m) sensing element designed to measure the coldest 1-foot segment for accurate response.

Sale Price $191.00 USD
Regular Price $492.73 USD
Availability 2 to 3 Weeks
Quantity

Schneider TC-5241 Offers

Features

  • 20' (6.1 m) element senses temperature over a large area. Control responds to coldest one-foot section of the sensor
  • Adjustable setpoint from 35 to 60°F (1.7 to 15.5°C) with 5°F (3°C) fixed differential
  • SPDT and DPST versions
  • Rated for use at 17 full load amps (120/208/240 V AC), 24 non-inductive amps (120/208/240 V AC), and 16 non-inductive amps (24 V AC). Capable of controlling refrigeration equipment directly
  • UL and CSA approved
  • Capillary clips provided

Applications

  • Low temperature control of steam coils
  • Frost indication in storehouses or orchards
  • Temperature control of freezer cabinets, display cases, beverage coolers, milk cooling tanks, and air conditioners

Schneider TC-5241 Specifications

Type of Measurement Temperature
Setpoint Range 35 to 60°F (1.7 to 15.5°C), dual marked
Sensing Element Vapor pressure type, copper construction
Response To lowest temperature sensed by any one-foot section of its element. Altitude causes the control to operate approximately 1°F colder per 1000' (305 m) of elevation
Differential 5°F (3°C) fixed
Electrical Switch SPDT
Device Type Low temp manual reset
Final Result for Connectable Not connectable
Final Result for Flywheel Performance Tracking Non flywheel
Probe Length 0.2" (6.1 mm)
Product or Component Type Thermostat

What's included with the Schneider TC-5241

  • Schneider Electric TC-5241 TC Series Low Temperature Thermostat with manual reset, SPDT switch, 35 to 60°F
manual for the Schneider Electric TC-5241 TC Series Low Temperature Thermostat with manual reset, SPDT switch, 35 to 60°F
