Seitron S1500-P Combustion Analyzer, base kit

Model: S1500-P

Seitron S1500-P Combustion Analyzer, base kit-

Downloads:

More Seitron Products

Ask an Expert

Seitron S1500-P Combustion Analyzer, base kit

Model: S1500-P

Six-tools-in-one; built-in differential digital pressure manometer and thermometer, combustion analyzer for O2, CO, CO2 (calculates combustion efficiency, excess air, losses, CO air free), ambient room air carbon monoxide (CO) leak detector, and dra' meter (negative and positive dra').

Six-tools-in-one; built-in differential digital pressure manometer and thermometer, combustion analyzer for O2, CO, CO2 (calculates combustion efficiency, excess air, losses, CO air free), ambient room air carbon monoxide (CO) leak detector, and dra' meter (negative and positive dra').

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Seitron Novo 1-P Combustion Analyzer with integrated printer, O<sub>2</sub>/CO/H<sub>2</sub>-

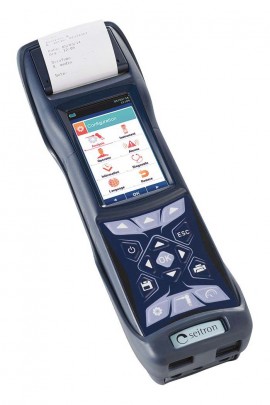

Seitron Novo 1-P Combustion Analyzer with integrated printer, O2/CO/H2

Model: Novo 1-P

Quick and intuitive, this combustion analyzer features a 7" (17.78 cm) touch display and a probe with one easy connection. Measure gas and combustion simultaneously with this analyzer which features an integrated water trap with an LED backlight. In addition, this analyzer includes O2 and CO/H2 sensors and an integrated printer.

Learn More

Recommended Accessories

Sauermann E1500SP SMART Incoming/Primary Air Temp Probe-

Sauermann E1500SP SMART Incoming/Primary Air Temp Probe

E1500SP

Sauermann EE900P Wireless Bluetooth Printer-

Sauermann EE900P Wireless Bluetooth Printer

EE900P

Seitron AACA02 12 VDC Automobile Battery Charger-

Seitron AACA02 12 VDC Automobile Battery Charger

AACA02

Seitron AACCT01 Soft Vinyl Carrying Case with shoulder strap for the S500/1500/4500-

Seitron AACCT01 Soft Vinyl Carrying Case with shoulder strap for the S500/1500/4500

AACCT01

Seitron AACEX01 Dual Hose Extension for the S1500 and S4500, 10'-

Seitron AACEX01 Dual Hose Extension for the S1500 and S4500, 10'

AACEX01

E Instruments BTU1500-1 Offers

Features

  • Built–In Printer (NON–Fading)
  • Full COLOR GRAPHIC Display Screen with ZOOM Function & Backlight
  • Automatic Data Saving
  • 2000 Internal Test Memory Spots
  • High Range CO Sensor (0–8000 ppm) with Integrated NOx Filter
  • Flue & Ambient Temperature
  • Unbreakable Metal hose connectors
  • Outdoor Air Temp Measurement (High Efficiency & Condensing Boilers)
  • "Plug–n–Play" Pre–Calibrated Field Replaceable Sensors
  • 32 programmed fuels and oils
  • One button operation
  • Zoom feature
  • customized printouts

E Instruments BTU1500-1 Specifications

Parameter O₂
Sensor Electrochemical
Range 0 - 25%
Resolution 0.1%
Accuracy ±0.2% vol
Parameter CO₂
Sensor Calculated
Range 0 - 99.9%
Resolution 0.1%
Click here for complete specifications on the Seitron S1500-P

What's included with the E Instruments BTU1500-1

  • Combustion Analyzer
  • PC Software Package with USB & Bluetooth Communications
  • Quick & Easy Intuitive Menu with One–Page Quick reference Guide
  • External Water Trap for Easy Condensate Removal
  • Rechargeable Lithium Ion Battery Pack with AC Charger
  • 12″ Probe Included with 10′ Dual Hose for Gas & Draft Measurements
  • Lightweight Vinyl Carrying Case (Hard ABS Case available)
  • Protective Magnetic Rubber Boot
  • Quick & Easy Intuitive Menu with One–Page Quick reference Guide

Click on a category to view a selection of compatible accessories with the Seitron S1500-P Combustion Analyzer, base kit.

Seitron AACSE14 High-Range NO2 Sensor for the S4500, 0 to 1000 ppm AACSE14
Compatible with the S4500 analyzers, this high-range NO2 sensor features a range of 0 to 1000 ppm.



Sauermann AB510-W0X Replacement CO Gas Sensor (not calibrated) with NOx filter, 0-8000 ppm AB510-W0X
For use with the BTU Combustion Gas Analyzers.



Sauermann AF508-W0C Replacement NO/NOx Gas Sensor (not calibrated) AF508-W0C
For use with BTU900, 4500 Combustion Analyzers.



Seitron AACSE13 High-Range SO2 Sensor for the S4500, 0 to 5000 ppm AACSE13
Compatible with the S4500 analyzers, this high-range SO2 sensor features a range of 0 to 5000 ppm.



Seitron AACSE12 CO Sensor for the S1500 and S4500, 0 to 8000 ppm AACSE12
Compatible with the S1500 and S4500 analyzers, this standard CO sensor features a range of 0 to 8000 ppm.



Seitron AACSE10 High-Range NO Sensor for the S4500, 0 to 5000 ppm AACSE10
Compatible with the S4500 analyzers, this high-range NO sensor features a range of 0 to 5000 ppm.



Sauermann AAA32-240 Replacement O2 Gas Sensor (all models) AAA32-240
For use with BTU Combustion Gas Analyzers.



Seitron AACTA03 Water Trap Assembly with filter cartridge AACTA03
For use with all BTU Combustion Gas Analyzers.



E Instruments AARC05 Non-Fading Synthetic Printer Paper, pack of 5 AARC05
For use with BTU1500, 4500 Combustion Gas Analyzers.



Sauermann AARC05-T Thermal Printer Paper, pack of 5 AARC05-T
For use with BTU900, 1500, 4500 Combustion Gas Analyzers.



Seitron AACFA01 Filter Cartridge for Water Trap, pack of 5 filters AACFA01
For use with BTU Combustion Gas Analyzers.



Sauermann BB610033 36" Pitot Tube for Gas Velocity Measurements BB610033
For use with BTU Combustion Analyzers.



Sauermann SINT1 Sintered Filter for Probe SINT1
For use with the BTU Combustion Analyzers. Compatible with 40" & 60" probes only.



Sauermann E1500SP SMART Incoming/Primary Air Temp Probe E1500SP
For use with BTU1500/4500 Combustion Analyzers. Includes 10' (3m) cable.



Sauermann SCU Sample Conditioning Unit for High Moisture and/or Low NOx/SO2 SCU
For use with the BTU Combustion Analyzers.



Sauermann EE900P Wireless Bluetooth Printer EE900P
For use with AQ VOC Indoor Air Quality Monitors.



Seitron AACA02 12 VDC Automobile Battery Charger AACA02
For use with BTU Combustion Gas Analyzers.



Seitron AACCT01 Soft Vinyl Carrying Case with shoulder strap for the S500/1500/4500 AACCT01
This carrying case features a shoulder strap and is compatible with the S500/1500/4500 analyzers.



Seitron AACEX01 Dual Hose Extension for the S1500 and S4500, 10' AACEX01
This 10' (3 m) dual hose extension is for use with the S1500 and S4500 analyzers.



Ask a question about Seitron S1500-P Combustion Analyzer, base kit

Customer Reviews for the Seitron S1500-P

E Instruments BTU1500-1 Offers

Features

  • Built–In Printer (NON–Fading)
  • Full COLOR GRAPHIC Display Screen with ZOOM Function & Backlight
  • Automatic Data Saving
  • 2000 Internal Test Memory Spots
  • High Range CO Sensor (0–8000 ppm) with Integrated NOx Filter
  • Flue & Ambient Temperature
  • Unbreakable Metal hose connectors
  • Outdoor Air Temp Measurement (High Efficiency & Condensing Boilers)
  • "Plug–n–Play" Pre–Calibrated Field Replaceable Sensors
  • 32 programmed fuels and oils
  • One button operation
  • Zoom feature
  • customized printouts
Show More...

E Instruments BTU1500-1 Specifications

Parameter O₂
Sensor Electrochemical
Range 0 - 25%
Resolution 0.1%
Accuracy ±0.2% vol
Parameter CO₂
Sensor Calculated
Range 0 - 99.9%
Resolution 0.1%
Click here for complete specifications on the Seitron S1500-P

What's included with the E Instruments BTU1500-1

  • Combustion Analyzer
  • PC Software Package with USB & Bluetooth Communications
  • Quick & Easy Intuitive Menu with One–Page Quick reference Guide
  • External Water Trap for Easy Condensate Removal
  • Rechargeable Lithium Ion Battery Pack with AC Charger
  • 12″ Probe Included with 10′ Dual Hose for Gas & Draft Measurements
  • Lightweight Vinyl Carrying Case (Hard ABS Case available)
  • Protective Magnetic Rubber Boot
  • Quick & Easy Intuitive Menu with One–Page Quick reference Guide

Click on a category to view a selection of compatible accessories with the Seitron S1500-P Combustion Analyzer, base kit.

Seitron AACSE14 High-Range NO2 Sensor for the S4500, 0 to 1000 ppm AACSE14
Compatible with the S4500 analyzers, this high-range NO2 sensor features a range of 0 to 1000 ppm.



Sauermann AB510-W0X Replacement CO Gas Sensor (not calibrated) with NOx filter, 0-8000 ppm AB510-W0X
For use with the BTU Combustion Gas Analyzers.



Sauermann AF508-W0C Replacement NO/NOx Gas Sensor (not calibrated) AF508-W0C
For use with BTU900, 4500 Combustion Analyzers.



Seitron AACSE13 High-Range SO2 Sensor for the S4500, 0 to 5000 ppm AACSE13
Compatible with the S4500 analyzers, this high-range SO2 sensor features a range of 0 to 5000 ppm.



Seitron AACSE12 CO Sensor for the S1500 and S4500, 0 to 8000 ppm AACSE12
Compatible with the S1500 and S4500 analyzers, this standard CO sensor features a range of 0 to 8000 ppm.



Seitron AACSE10 High-Range NO Sensor for the S4500, 0 to 5000 ppm AACSE10
Compatible with the S4500 analyzers, this high-range NO sensor features a range of 0 to 5000 ppm.



Sauermann AAA32-240 Replacement O2 Gas Sensor (all models) AAA32-240
For use with BTU Combustion Gas Analyzers.



Seitron AACTA03 Water Trap Assembly with filter cartridge AACTA03
For use with all BTU Combustion Gas Analyzers.



E Instruments AARC05 Non-Fading Synthetic Printer Paper, pack of 5 AARC05
For use with BTU1500, 4500 Combustion Gas Analyzers.



Sauermann AARC05-T Thermal Printer Paper, pack of 5 AARC05-T
For use with BTU900, 1500, 4500 Combustion Gas Analyzers.



Seitron AACFA01 Filter Cartridge for Water Trap, pack of 5 filters AACFA01
For use with BTU Combustion Gas Analyzers.



Sauermann BB610033 36" Pitot Tube for Gas Velocity Measurements BB610033
For use with BTU Combustion Analyzers.



Sauermann SINT1 Sintered Filter for Probe SINT1
For use with the BTU Combustion Analyzers. Compatible with 40" & 60" probes only.



Sauermann E1500SP SMART Incoming/Primary Air Temp Probe E1500SP
For use with BTU1500/4500 Combustion Analyzers. Includes 10' (3m) cable.



Sauermann SCU Sample Conditioning Unit for High Moisture and/or Low NOx/SO2 SCU
For use with the BTU Combustion Analyzers.



Sauermann EE900P Wireless Bluetooth Printer EE900P
For use with AQ VOC Indoor Air Quality Monitors.



Seitron AACA02 12 VDC Automobile Battery Charger AACA02
For use with BTU Combustion Gas Analyzers.



Seitron AACCT01 Soft Vinyl Carrying Case with shoulder strap for the S500/1500/4500 AACCT01
This carrying case features a shoulder strap and is compatible with the S500/1500/4500 analyzers.



Seitron AACEX01 Dual Hose Extension for the S1500 and S4500, 10' AACEX01
This 10' (3 m) dual hose extension is for use with the S1500 and S4500 analyzers.



Ask a question about Seitron S1500-P Combustion Analyzer, base kit

Customer Reviews for the Seitron S1500-P
