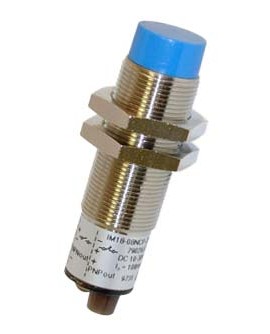

Built for high-vibration areas, this complementary (NPN-NO and NPN-NC) proximity sensor suits applications that require a greater sensing distance.
Built for high-vibration areas, this complementary (NPN-NO and NPN-NC) proximity sensor suits applications that require a greater sensing distance.
Shimpo proximity sensors are paired to panel tachometers, panel counters and stroboscopes. They can be used in many environments from laboratory to hazardous and for various.
Features
Applications
| Sensing Distance | 8 mm (0.32") |
| Activating Frequency | 300 Hz |
| Voltage Requirement | 10 - 30 VDC |
| Output | NPN (NO, NC) |
| Output Current | 100 mA |
| Cable | 6.5' (2 m) |
| Housing | Nickel plated brass |
| Ambient Temperature | -25 to 70°C (-13 to 158°F) |
| Degree of Protection | IP67 / NEMA 4 (for use in high vibration areas) |
| Sensing Distance | 8 mm (0.32") |
| Activating Frequency | 300 Hz |
| Voltage Requirement | 10 - 30 VDC |
| Output | NPN (NO, NC) |
| Output Current | 100 mA |
| Cable | 6.5' (2 m) |
| Housing | Nickel plated brass |
| Ambient Temperature | -25 to 70°C (-13 to 158°F) |
| Degree of Protection | IP67 / NEMA 4 (for use in high vibration areas) |
